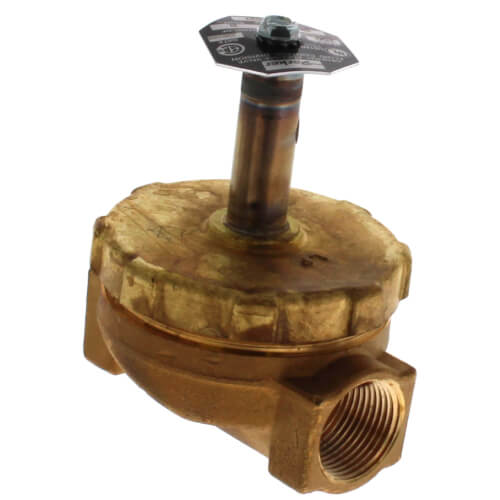

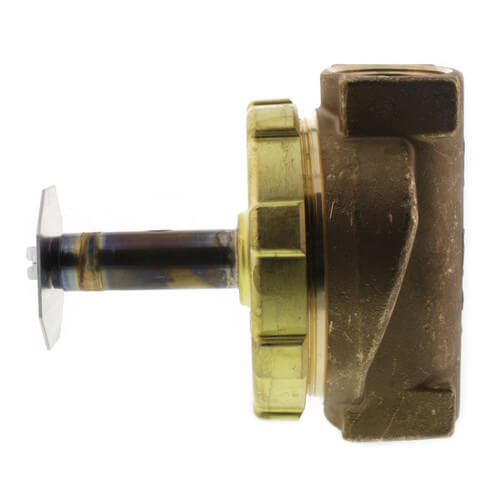

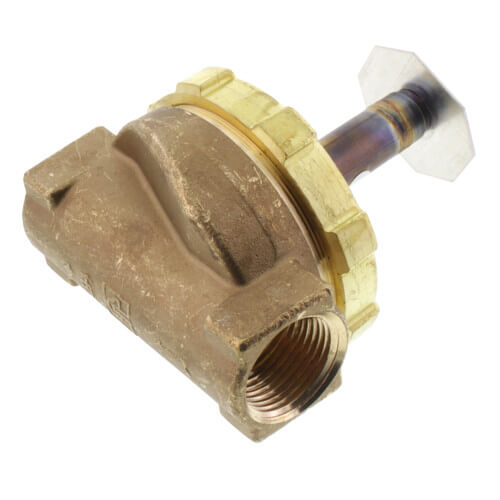

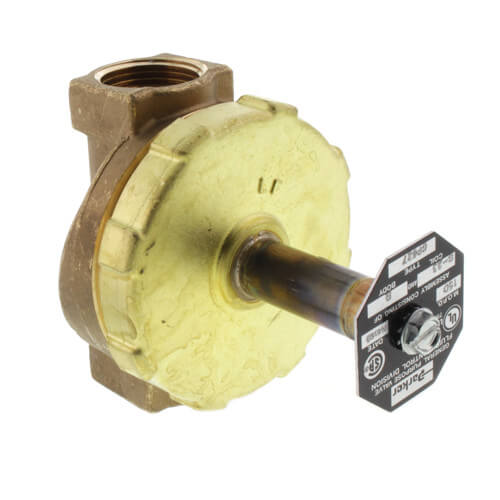

Parker Hannifin 70742 3/4 GP627 Normally Closed General Purpose Solenoid Valve (7.4 Cv)

Product Description

The Parker Hannifin 70742 is a three-fourth inch general purpose solenoid valve designed for steam service. This valve operates effectively at pressures up to ten PSI for saturated steam applications. Take care not to use this valve on systems that regulate steam to ten PSI or less, as it can lead to damage.

• Maximum fluid temperature: two hundred forty degrees Fahrenheit
• Flow capacity of seven point four Cv
• Normally closed, making it ideal for control systems

Product Highlights

Use this solenoid valve for reliable operation in various plumbing applications requiring steam management.

Product Information

Standard Information

• Brand: Parker Hannifin
• Product Type: Solenoid Valve

Technical Specifications

• MPN: 70742
• Port Size: three-fourth inch
• Max Temperature: two hundred forty degrees Fahrenheit
• Max Pressure: ten PSI
• Flow Capacity: seven point four Cv
• Body Pattern: Two-Way
• Connection Type: FNPT x FNPT
• Weight: one point nine three pounds
