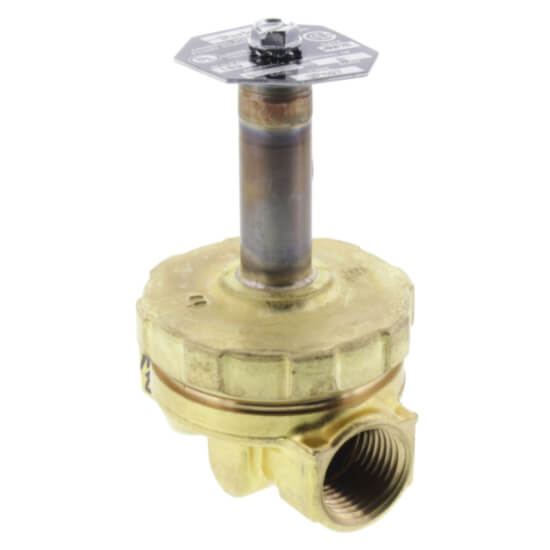

Parker Hannifin 70586 1/2 GP427 Normally Closed General Purpose Solenoid Valve 3.35 Cv

Product Description

The Parker Hannifin 70586 is a 1/2 inch GP427 normally closed general purpose solenoid valve designed for steam service. It operates effectively up to 10 PSI and is suitable for saturated steam applications. Do not use on systems with steam regulated to 10 PSI or below from above 10 PSI to avoid damage to the valve. Please note that all valves are sold without coils.

• Port Size: 1/2 inches
• Maximum fluid temperature: 240 degrees Fahrenheit
• Flow capacity: 3.35 Cv

Product Highlights

This solenoid valve is specifically made for steam applications, providing reliable operation in various plumbing situations. Its durable construction ensures long-lasting performance, making it ideal for HVAC and industrial systems.

Product Information

Standard Information

• Body Pattern: 2-Way
• Position: Normally Closed

Technical Specifications

• Max Temperature: 240 degrees Fahrenheit
• Max Pressure: 10 PSI
• Flow Capacity: 3.35 Cv
• Connection Type: FNPT x FNPT
• Shipping Depth: 4.3 inches
• Shipping Width: 2.6 inches
• Shipping Height: 1.8 inches
• Weight: 0.6 pounds
