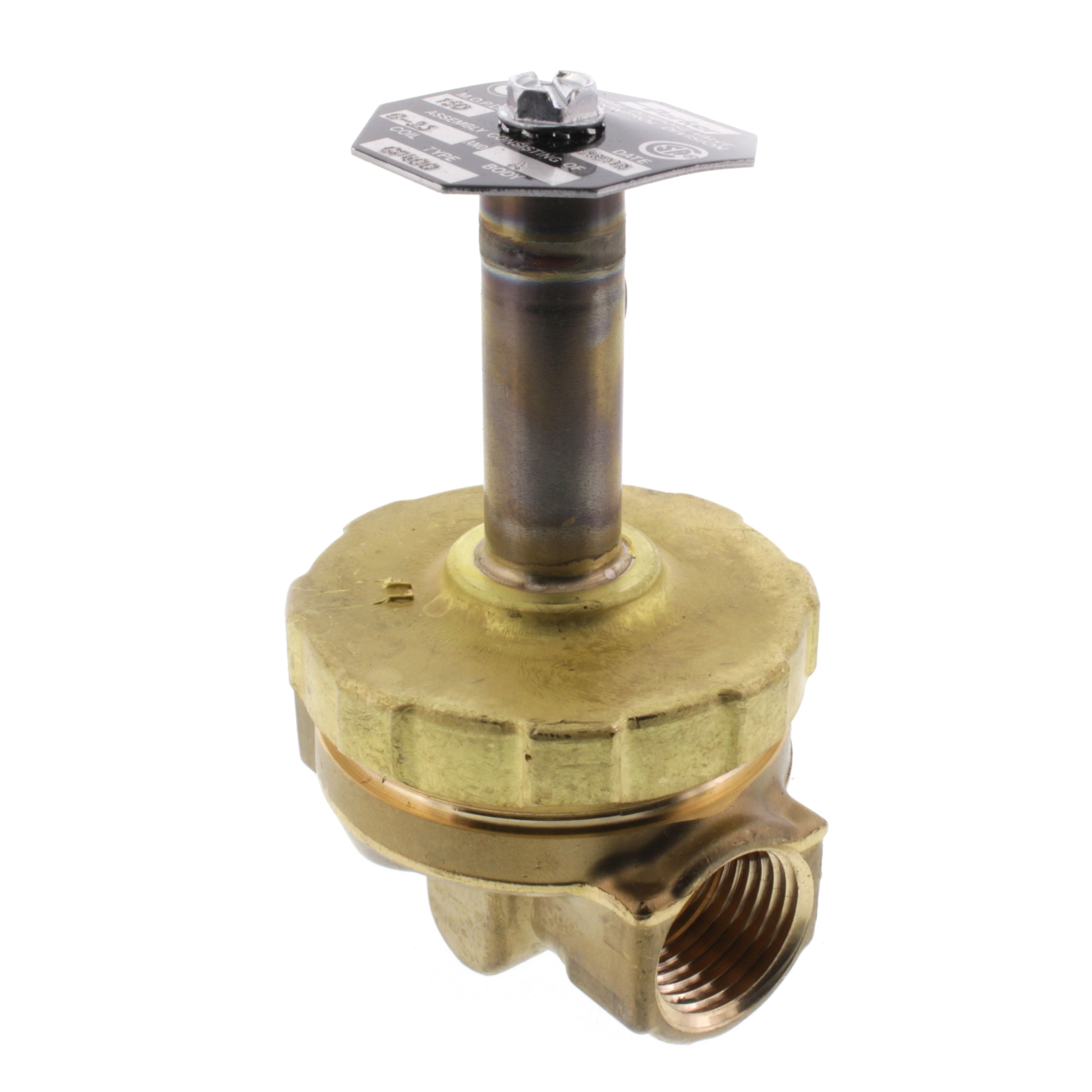

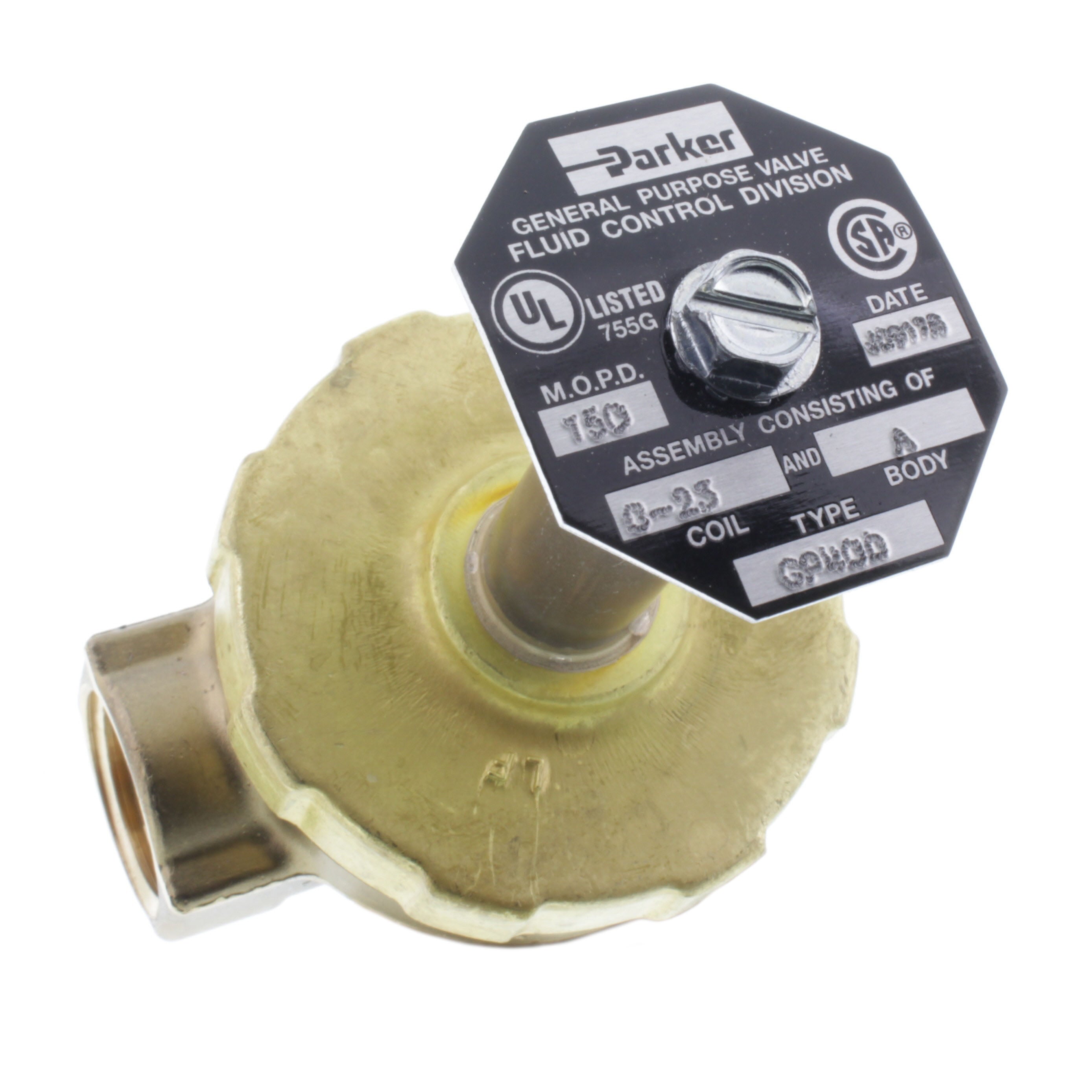

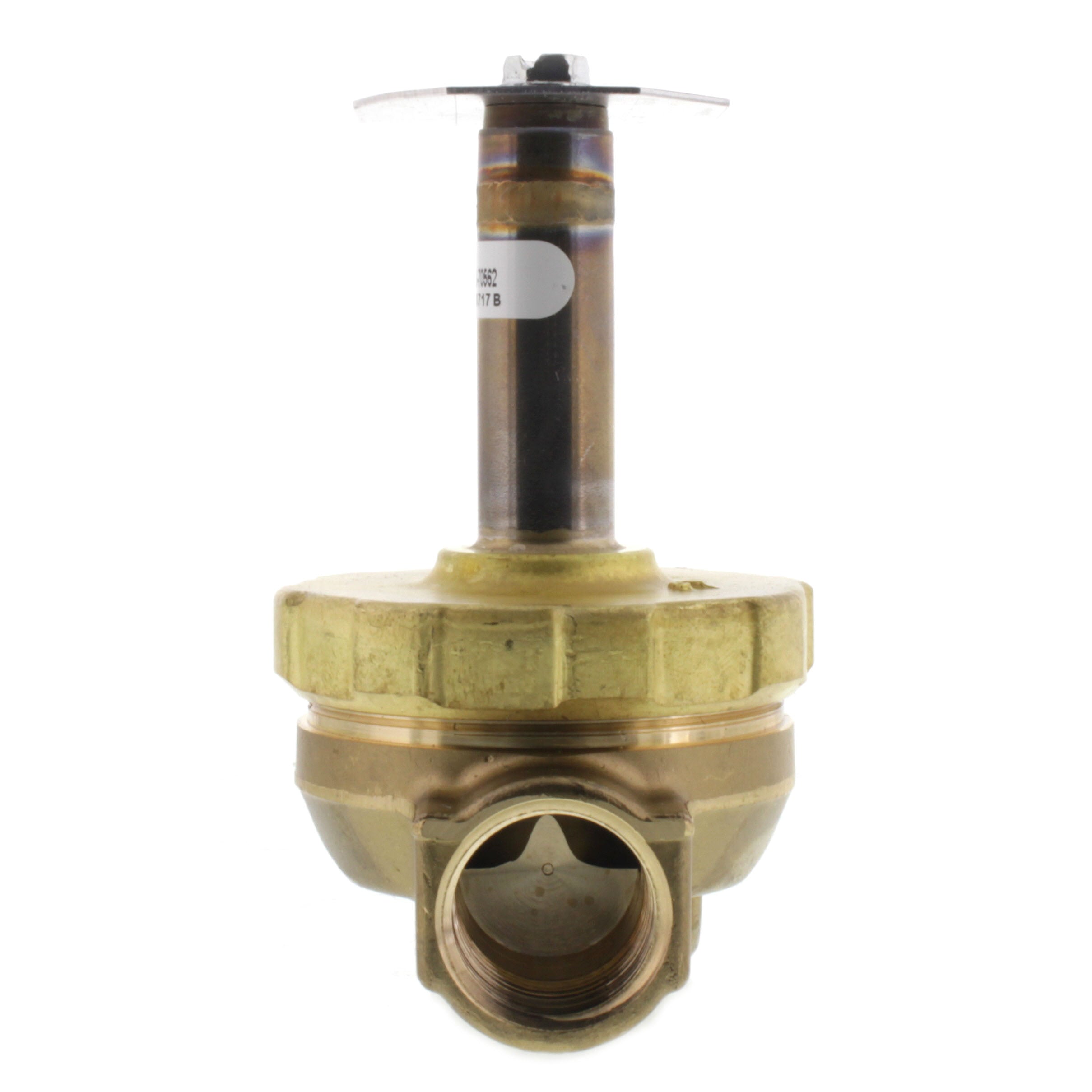

Parker Hannifin 70562 1/2 GP400 Normally Closed General Purpose Solenoid Valve 3.35 Cv

Product Description

The Parker Hannifin 70562 is a half-inch GP400 normally closed general-purpose solenoid valve. It operates efficiently under low and high pressure. It is suitable for various general applications involving non-corrosive fluids. This valve seals off bubbletight and is designed for fluids like air, water up to one hundred eighty degrees Fahrenheit, light oils below three hundred SUS, and low vacuum.

• Port size: half-inch
• Flow capacity: three point thirty-five Cv
• Maximum fluid temperature: two hundred twenty-five degrees Fahrenheit

Product Highlights

Designed for general applications, the Parker Hannifin solenoid valve features a forged brass body, Buna N diaphragm, and a stainless steel plunger. It is important to note that the valve does not come with a coil.

Product Information

Standard Information

• Body Pattern: Two-way
• Position: Normally closed

Technical Specifications

• Temperature Range: Maximum of two hundred twenty-five degrees Fahrenheit
• Max Pressure: One hundred fifty PSI
• Connection Type: FNPT x FNPT
• Weight: One point zero three pounds
• Shipping Dimensions: Four point five inches depth, three point forty-five inches width, three point fifteen inches height
