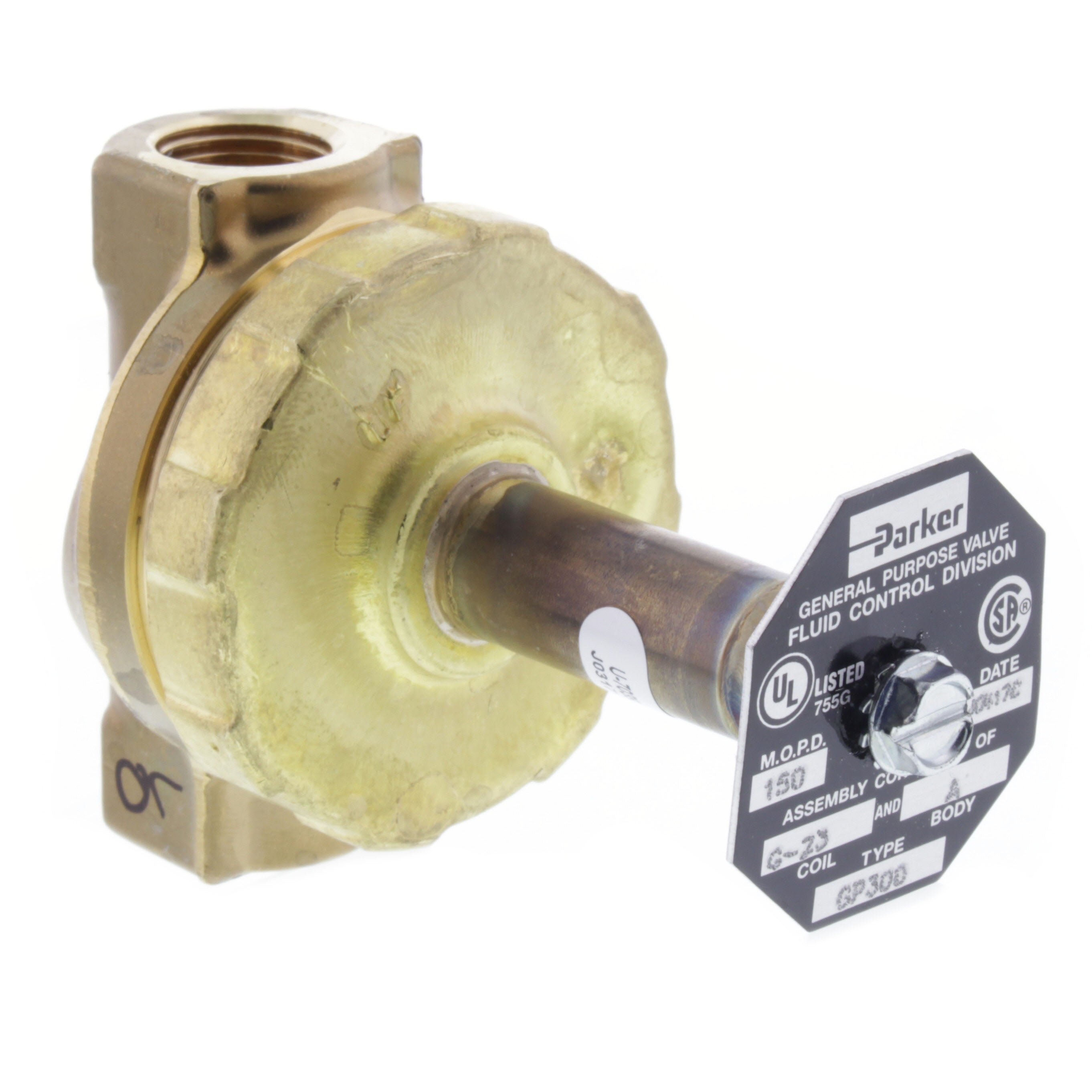

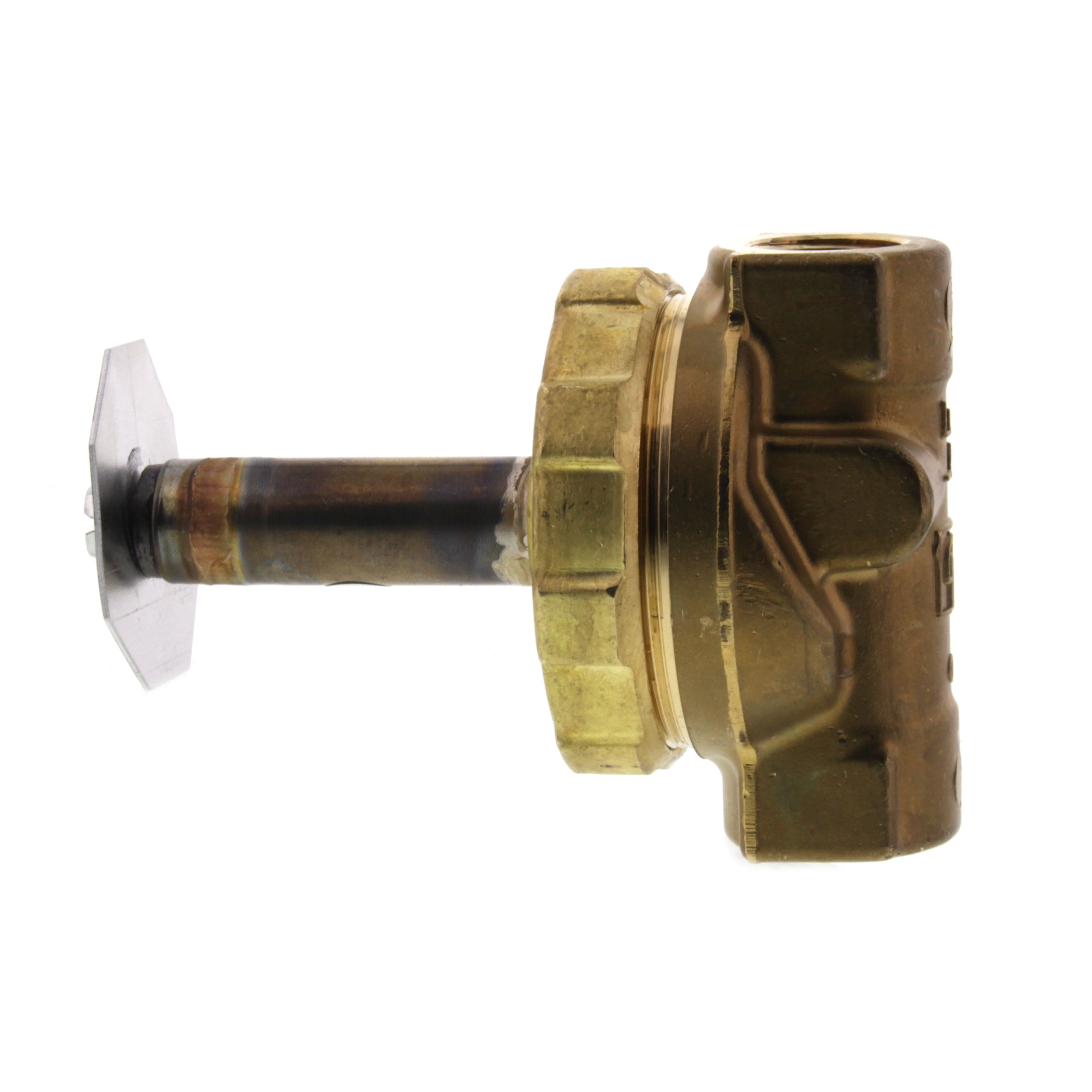

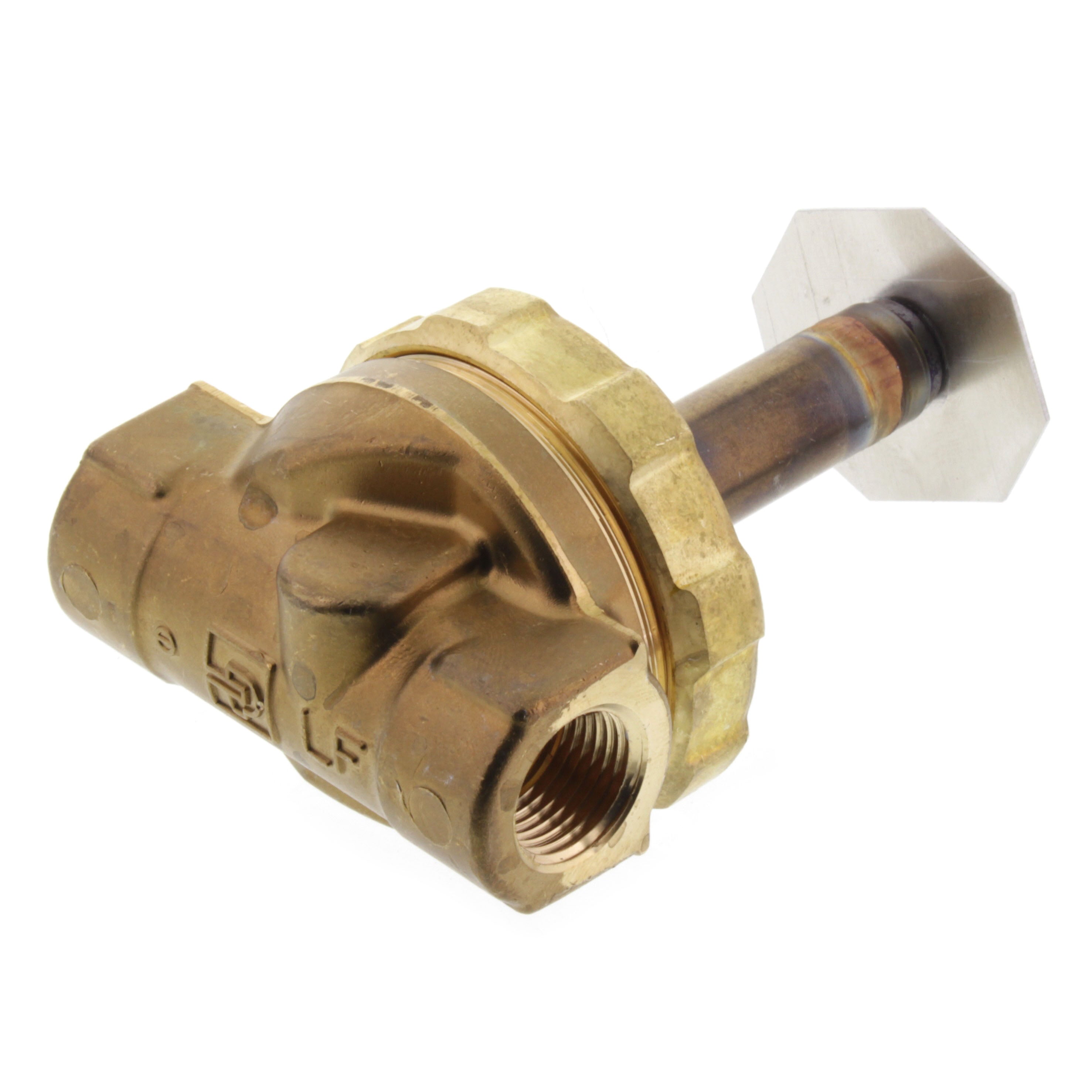

Parker Hannifin 70392 3/8 GP300 Normally Closed General Purpose Solenoid Valve 3.35 Cv

Product Description

The Parker Hannifin 70392 is a 3/8 inch GP300 normally closed general purpose solenoid valve. It is designed for both low and high pressure applications. The valve is suitable for non-corrosive fluids such as air, water below one hundred eighty degrees Fahrenheit, and light oils under three hundred SUS.

• Type 1 two-way solenoid valve
• Forged brass body with Buna N diaphragm
• Flow capacity of three point thirty-five Cv

Product Highlights

This valve delivers reliable performance for plumbing applications, ensuring bubble-tight sealing. Note that all valves are sold without coils. Its constructed materials, including a type 430 stainless steel plunger, enhance durability.

Product Information

Standard Information

• Brand: Parker Hannifin
• MPN: 70392

Technical Specifications

• Fluid Temperature Maximum: 225 degrees Fahrenheit
• Normal Pressure Range: 1-150 PSI
• Port Size: 1/2 inch
• Body Pattern: Two-Way
• Connection Type: FNPT x FNPT
• Weight: 1.1 lbs
• Shipping Dimensions: 10 x 5 x 5 inches
• Flow Capacity: 3.35 Cv
• Product Type: Solenoid Valve
