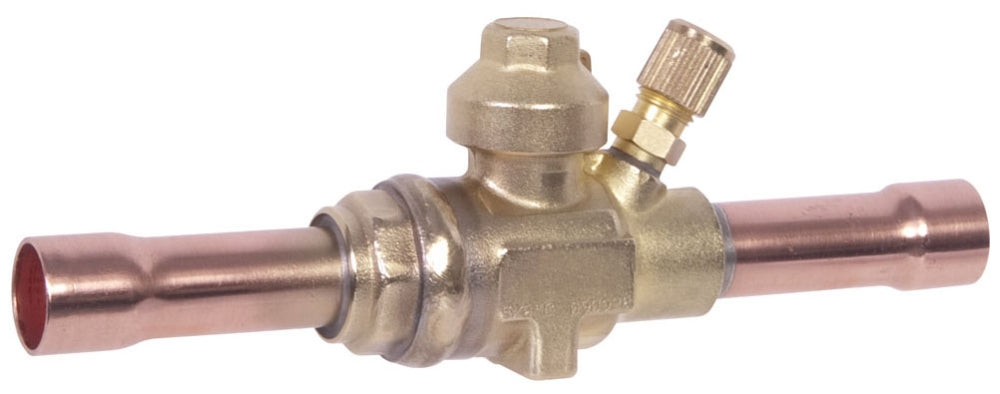

Parker Hannifin 50255 1/2, C x C, 700 PSIG, Forged Brass, Full Port, Ball Valve

Product Description

The Parker Hannifin 50255 is a ball valve that features a nominal size of one half inch. It connects with female soldered ends on both sides. This valve can handle a pressure rating of up to seven hundred PSIG and operates within a temperature range of negative forty to three hundred degrees Fahrenheit.

• Forged brass construction for durability
• Full port design for unrestricted flow
• Includes copper fitting and stainless steel stop plate

Product Highlights

This ball valve is ideal for HVAC applications especially in areas like climate control and fluid handling.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• UPC: 68747247787

Technical Specifications

• Nominal Size: 1/2 Inch
• End Connection: Female Soldered x Female Soldered
• End to End Distance: 6.5 Inch
• Ball Material: Forged Brass
• Body Material: Polished Forged Brass
• Pressure Rating: 700 PSIG
• Temperature Rating: -40 to 300 Deg F
• Inclusions: Copper Fitting, Stainless Steel Stop Plate
• Applicable Standards: CE, UL
• Port Type: Full Port
• Height: 2.14 Inch
• Socket Depth: 0.38 Inch
