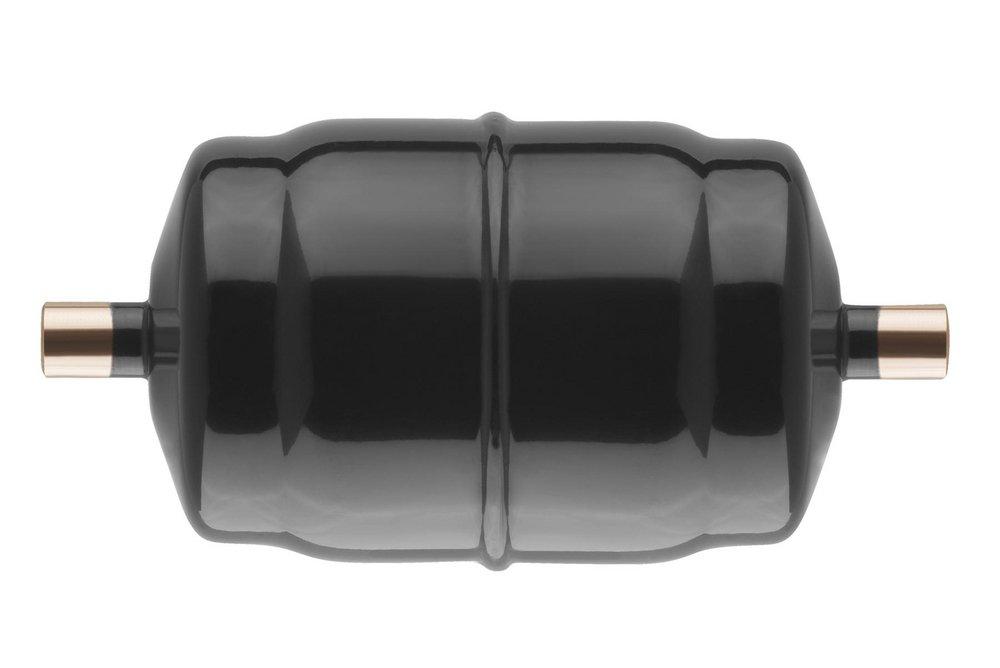

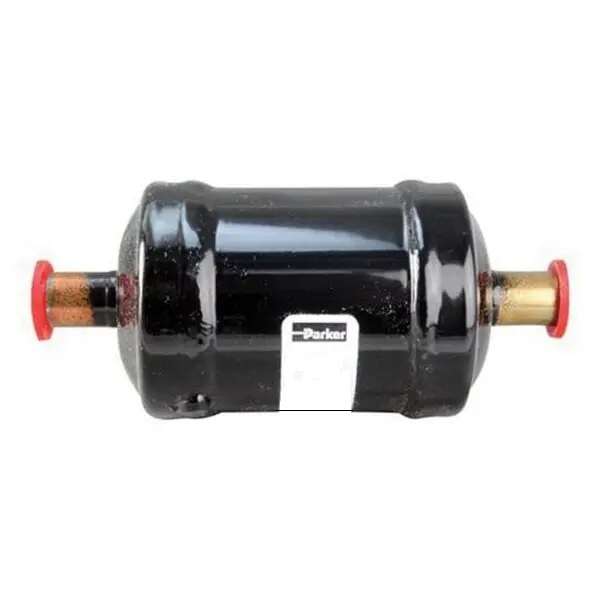

Parker Hannifin 450275-001 Filter Drier 1/4 inches x 1/4 inches 4.26 inches L

Product Description

The PARKER HANNIFIN 450275-001 is a filter drier designed for refrigerant liquid lines. It measures 4.26 inches in length and features 1/4 inch ODF soldered connections. Constructed from solid copper with a powder-painted finish, it is suitable for use with R-22, R-134a, R-404A, and R-507 refrigerants. It has a flow capacity of 2.1 Ton and a pressure rating of 650 PSI.

• Features a solid molecular sieve core for filtration.
• Powder paint exterior coating resists corrosion.
• Compatible with various refrigerants including R-410A.

Product Highlights

This filter drier provides moisture control and filtration for refrigeration systems, ensuring optimal performance and longevity. Made in the USA.

Product Information

Standard Information

• Brand: PARKER HANNIFIN
• Manufacturer Part Number: 450275-001
• Country of Origin: USA

Technical Specifications

• Material: Solid Copper
• Used On Item: Refrigerant
• Color/Finish: Powder Painted
• Series/Model: LLD
• Maximum Rated Pressure: 650 psig (44.8 bar)
• Fittings: Solid copper ODF solder fittings
• Core: Solid molecular sieve core
• Compatibility: Compatible with all commercially available refrigerants including R-410A; Mineral Oil, Alkybenzene and POE Lubricants
• Filtration: Maximum Filtration Capability
• Moisture and Acid Capacities: Unsurpassed Moisture and Acid Capacities
• Exterior Coating: Powder paint exterior coating surpasses 500 hour ASTM salt spray test to resist corrosion
• Listing: UL Listed under SMGT/SMGT7-SA1756
• Connection Type: ODF Soldered x ODF Soldered
• Length: 4.26"
• Capacity: 2.1 Ton
• Pressure Rating: 650 PSI
• Coating: Powder Painted
• Line Type: Liquid Line
• Product Type: Filter Drier
• Cubic Inches: 5
• Connection Size: 1/4"
• Refrigerant Type: R-410A, R-12, R-134A, R-407C, R-404A, R-22, R-507
• Working Pressure (PSI): 650 PSI
• Desiccant Volume (cu. in.): 5
• Core Type: 100% Molecular Sieve
• Model Number: LLD - 052S
• Diameter: 2.45 inch
• Application: Liquid Line Sealed Model Filter Drier
• Manufacturer: PARKER HANNIFIN
