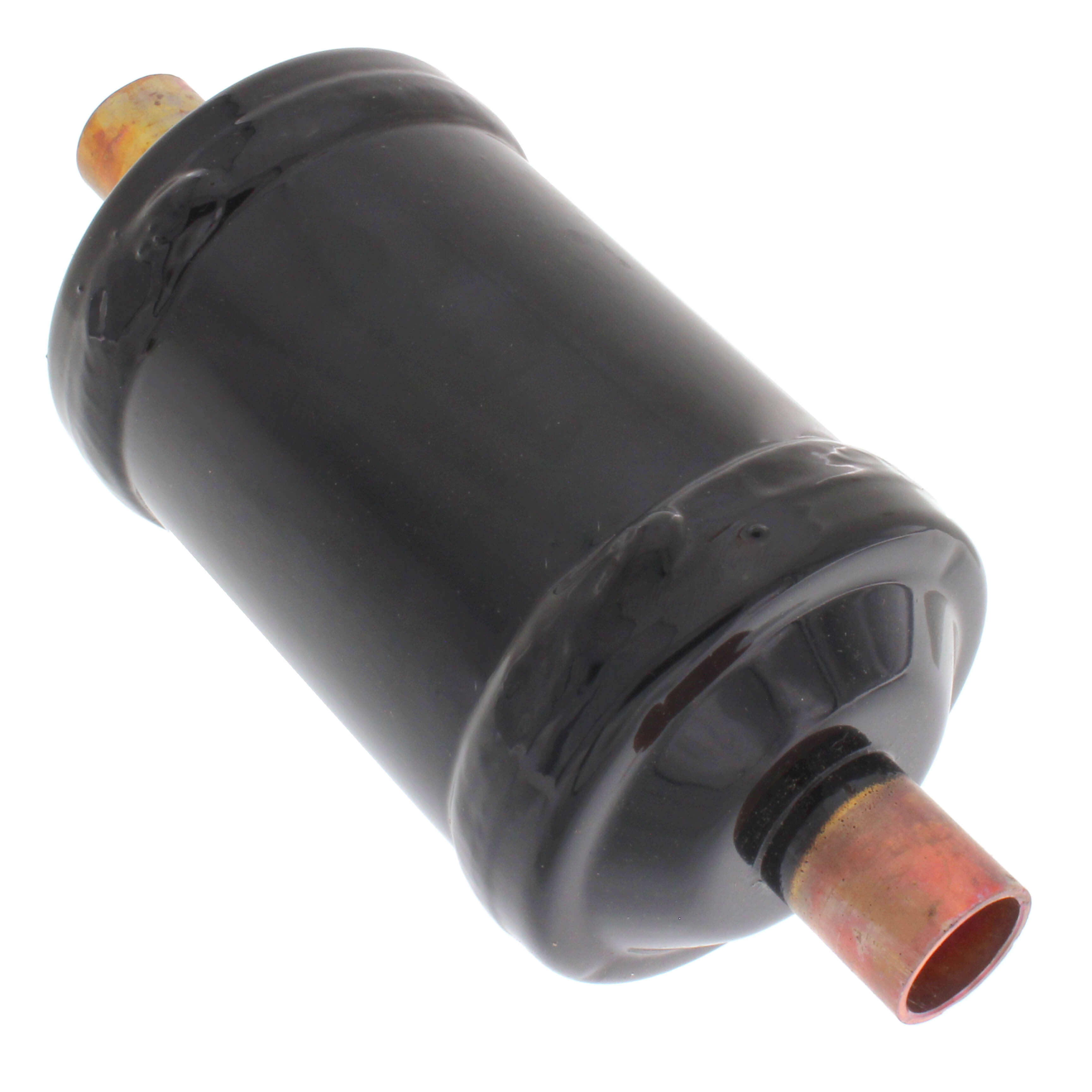

Parker Hannifin 450098-001 PF Series Pre-Filter 5 cu-in Unit 1/4 in Male SAE Flare Connection

Product Description

The Parker Hannifin 450098-001 PF Series Pre-Filter is a 5 cu-in unit with a 1/4 in Male SAE Flare Connection. It prevents damage by filtering solid contaminants from refrigerants. The pre-filter is for temporary use and should be changed after servicing a maximum of six to eight systems. Male-to-male fitting allows connection to or between hoses.

• Filters solid contaminants from refrigerants
• Features male-to-male fitting for connection to hoses
• Has an enlarged depth filtering area

Product Highlights

The Parker Hannifin 450098-001 pre-filter is designed to prevent costly damage by filtering contaminants from refrigerants, ensuring optimal system performance.

Product Information

Standard Information

• Brand: PARKER HANNIFIN
• Manufacturer Part Number: 450098-001
• Country of Origin: US

Technical Specifications

• Connection Type: 1/4 in Male SAE Flare
• Country of Origin: US
• Diameter: 2.38 in
• Domestic/Import: Domestic
• Mfg Standards/Approvals: cULus Listed|UL SMGT/SMGT8-SA1756
• Overall Length: 4.38 in
• Pressure Rating: 500 psig
• Series: PF Series
• Unit Size: 5 cu-in
• Product Type: Filter Drier
• Connection Size: 1/4"
• Inlet Connection Size: 1/4" SAE Male
• Outlet Connection Size: 1/4" SAE Male
