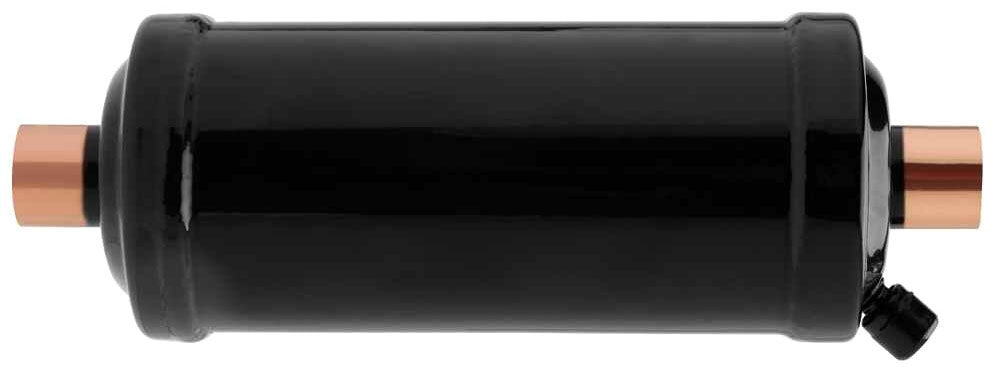

Parker Hannifin 450042-001 SLD Series 7/8 In. SWT Suction Line Drier

Product Description

The Parker Hannifin 450042-001 is a suction line filter drier designed to remove moisture from refrigerant systems, ensuring system reliability. This filter drier is compatible with various refrigerants, including R-22, R-134A, R-404A, R-507, R-407C, and R-410A.

• Designed for system clean-up
• Includes access valves for pressure drop measurement
• Compact design for tight installations

Product Highlights

The Parker 450042-001 features a solid copper end fitting and offers excellent protection against moisture, ensuring efficient refrigerant flow and system protection.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Part Number: 450042-001
• UPC: 68747246576

Technical Specifications

• Size: 3.03 inches diameter x 9.82 inches length
• Pressure Rating: 355 PSIG
• Desiccant Volume: 27 cubic inches
• Filter Area: 53 square inches
• End Connection: 7/8 inch female soldered x 7/8 inch female soldered
• Applicable Standards: UL (Canada and US)
• End Fitting Material: Solid Copper
• System Cutout Length: 8.32 inches
