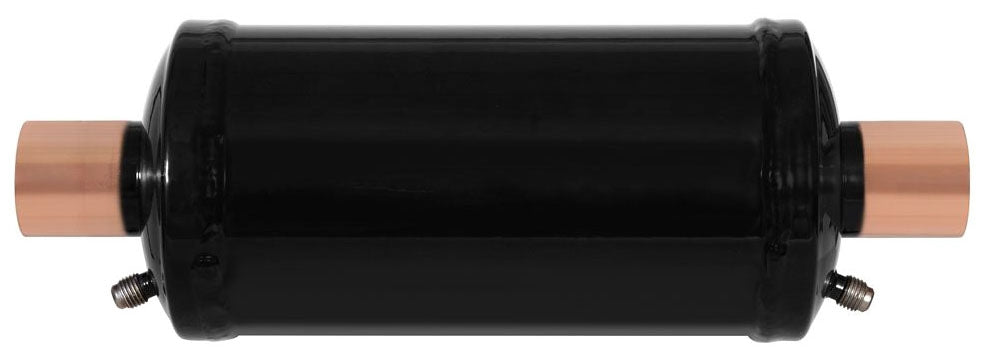

Parker Hannifin 450026-001 Filter Drier 12 Inch Length

Product Description

The PARKER HANNIFIN 450026-001 is a refrigerant filter drier designed for air conditioner and refrigerator systems. It features a molded porous core and is designed for system clean-up. This sealed, suction line filter drier has a 12 inch length and a pressure rating of 355 PSIG. It is made with solid copper end fittings.

• Molded Porous Core
• High Acid Capacity
• Low Pressure Drop Exceptionally High Flow Rates

Product Highlights

Designed for system clean-up with high acid capacity and low pressure drop. Features solid copper sweat fittings and is UL listed.

Product Information

Standard Information

• Brand: PARKER HANNIFIN
• Manufacturer Part Number: 450026-001
• Country of Origin: USA

Technical Specifications

• Applicable Standard: UL (Canada and US)
• Item: Filter Drier, Sealed, Suction Line
• Size: 12 Inch Length
• Used On Item: Air Conditioner and Refrigerator System
• Brand Name: Gold Label
• Series/Model: SLD
• Description: PKR SLD 54-11SVHH 1_3/8 SWEAT SUCTION DRIER
• Product Type: Filter Drier
• Type: Suction Line
• Connection Size: 1-3/8"
• Connection Type: ODF
• Working Pressure (PSI): 650 PSI
• Refrigerant Type: R-410A R-22
• Desiccant Volume (cu. in.): 54
• Length: 12 inch
• Diameter: 4 inch
• Model Number: SLD-54-11SV-HH
• Filter Area: 88 inch2
• Desiccant Volume: 54 Cubic Inch
• Pressure Rating: 355 PSIG
• End Fitting Material: Solid Copper
