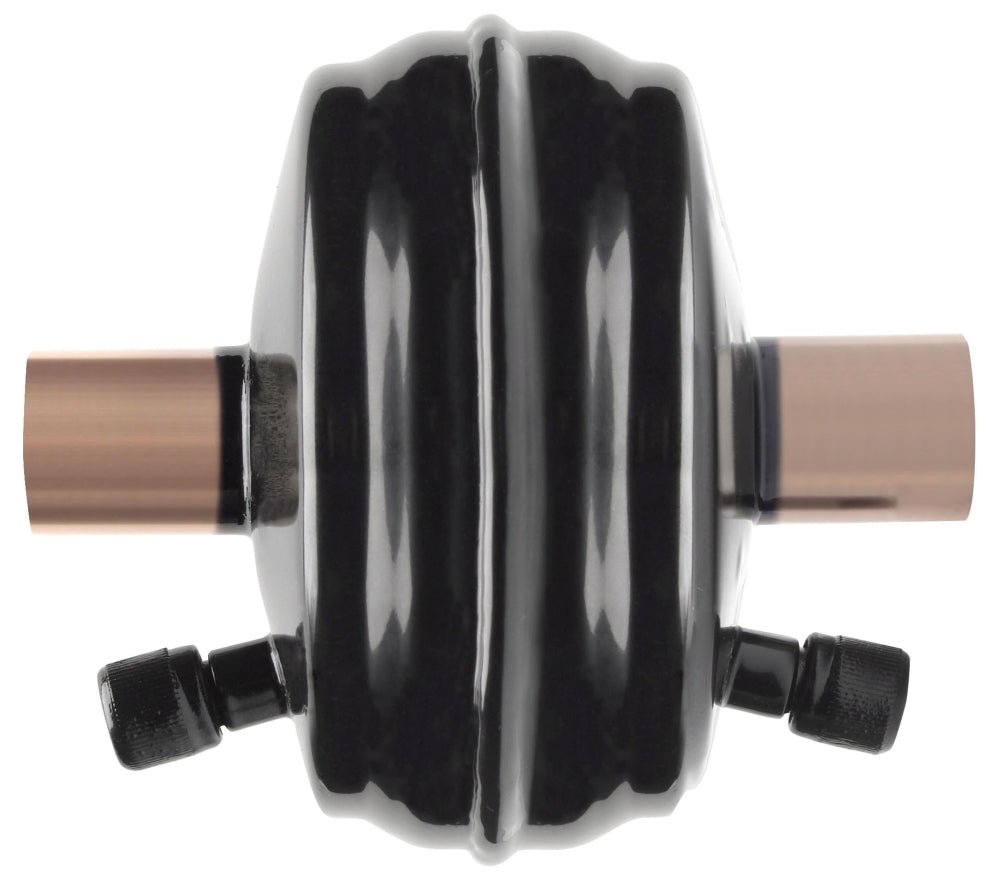

Parker Hannifin 450023-001 3/4 x 3/4, C x C, 4.42 x 4.83, 355 PSIG, 14 Cu Inch, 27 Sq Inch, Solid Copper End Fitting, Sealed, Suction Line Filter Drier

Product Description

The Parker Hannifin 450023-001 is a sealed suction line filter drier designed for use in air conditioning and refrigeration systems. It features a solid copper construction and provides high flow rates with low pressure drop. This filter drier is suitable for use with a variety of refrigerants, including R-22, R-134A, and R-410A.

• Sealed suction line filter drier for refrigerant systems.
• Solid copper end fittings for durability.
• Rated for pressures up to 355 PSIG.

Product Highlights

This product is designed to improve the efficiency of HVAC systems by removing moisture and contaminants from refrigerant lines.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Part Number: 450023-001

Technical Specifications

• Size: 4.42 inches diameter x 4.83 inches length
• Pressure Rating: 355 PSIG
• End Connection: 3/4 inch female soldered x 3/4 inch female soldered
• Desiccant Volume: 14 cubic inches
• Filter Area: 27 square inches
• System Cutout Length: 3.45 inches
