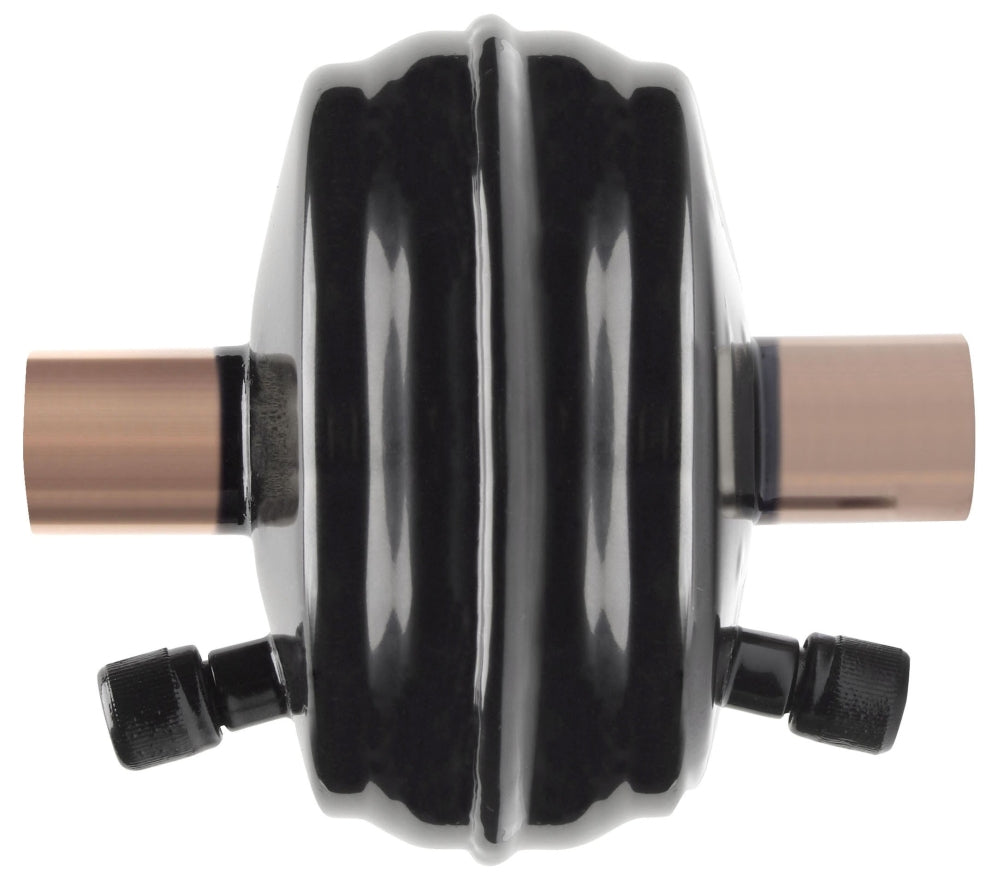

Parker Hannifin 450022-001 7/8 x 7/8, C x C, 4.42 x 4.98, 355 PSIG, 14 Cu Inch, 27 Sq Inch, Solid Copper End Fitting, Sealed, Suction Line Filter Drier for Refrigerant

Product Description

The Parker Hannifin 450022-001 is a suction line filter drier designed for air conditioning and refrigeration systems. This product measures four point forty-two inches in diameter and four point ninety-eight inches in length. It provides efficient moisture removal from refrigerant and features a solid copper end fitting.

• Compatible with refrigerants R-22, R-134A, R-404A, R-507, R-407C, and R-410A.
• Pressure rating of three hundred fifty-five PSIG.
• Compact design allows installation in tight spaces.

Product Highlights

This filter drier features a high acid capacity and low pressure drop for effective operation. It also has access valves to simplify pressure drop measurement, making it suitable for professional HVAC applications.

Product Information

Standard Information

• Brand: Parker Hannifin
• UPC: 68747203822
• Series/Model: SLD
• Applicable Standard: UL (Canada and US)

Technical Specifications

• End Connection: 7/8 Inch Female Soldered
• Desiccant Volume: 14 Cubic Inch
• Filter Area: 27 Square Inch
• System Cutout Length: 3.48 Inch
• End Fitting Material: Solid Copper
