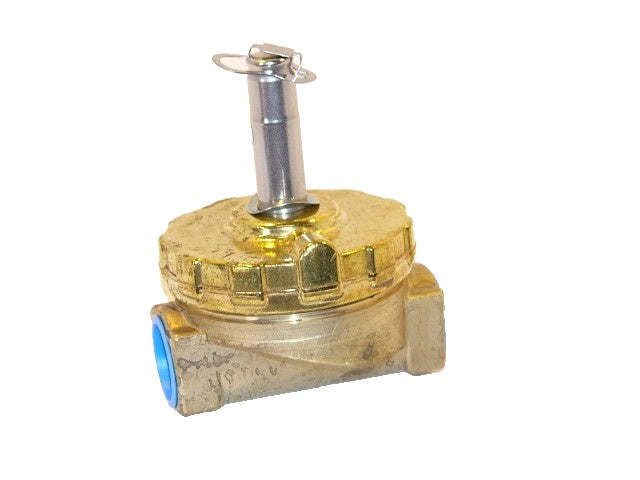

Parker 12FS5C2448ACH Fluid Control N/C Steam Valve Brass

Product Description

The Parker Hannifin 12FS5C2448ACH is a robust solenoid valve designed for controlling steam flow in industrial applications. This precision-engineered valve is constructed from high-quality brass, ensuring longevity and resistance to corrosion.

• Direct acting and pilot-operated mechanism ensures reliable operation.
• Features PTFE seals for high temperature resilience up to 353 degrees Fahrenheit.
• Compatible with a wide range of devices, including laundry equipment, steam cookers, and industrial machinery.

Product Highlights

The valve operates efficiently with a flow factor of 7.40 Cv and can handle pressure differentials from 1 to 125 PSI. Ideal for HVAC systems requiring precise steam control.

Product Information

Standard Information

• Brand: Parker Hannifin
• Model: 12FS5C2448ACH

Technical Specifications

• Material: Brass
• Seal Material: PTFE
• Maximum Temperature: 353F
• Port Size NPT: 3/4 inch
• Orifice Size: 3/4 inch
• Flow Factor: Cv 7.40
• Operating Pressure Differential (MOPD) PSI: 1 - 125
• Watt: 11
