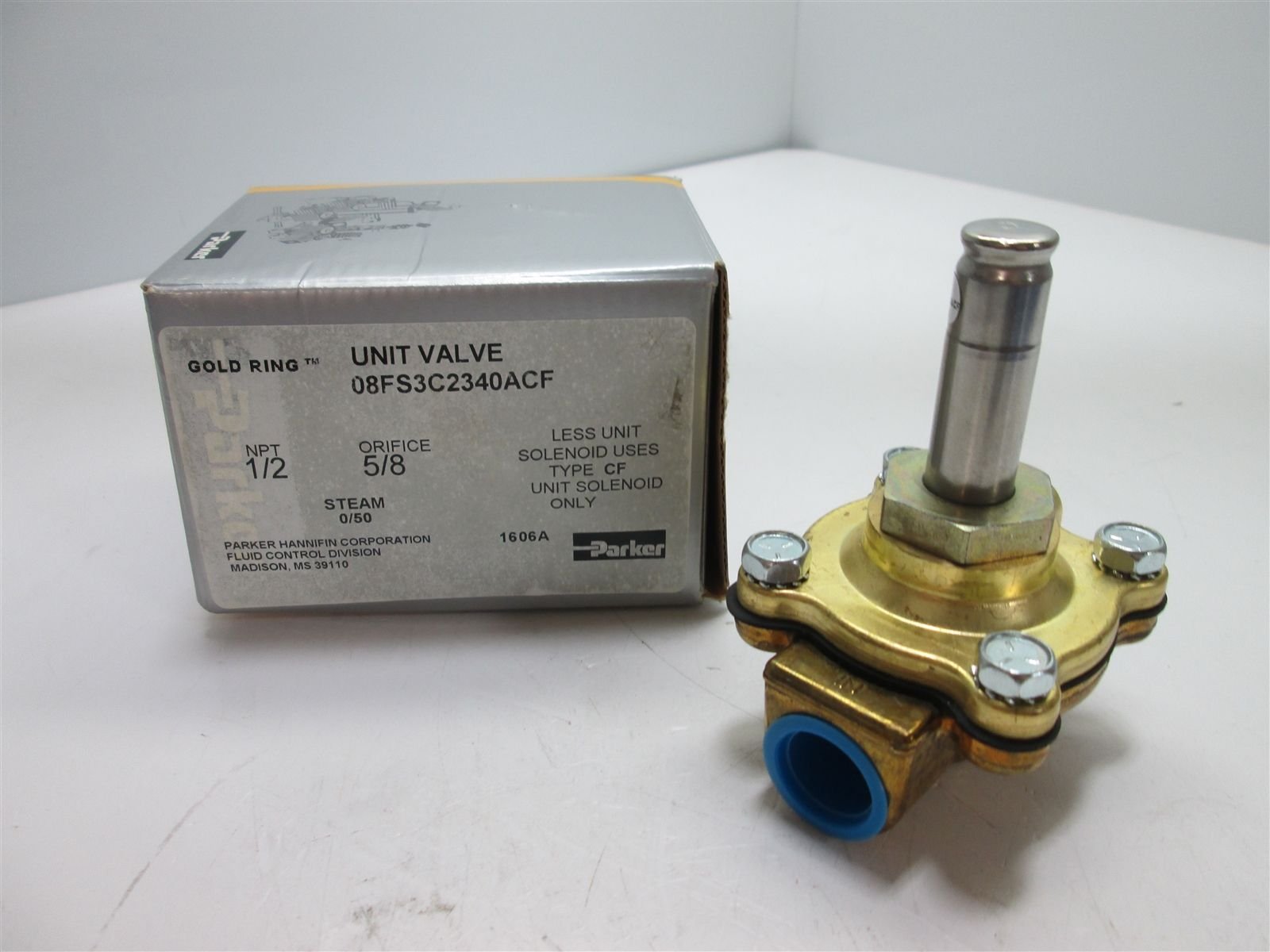

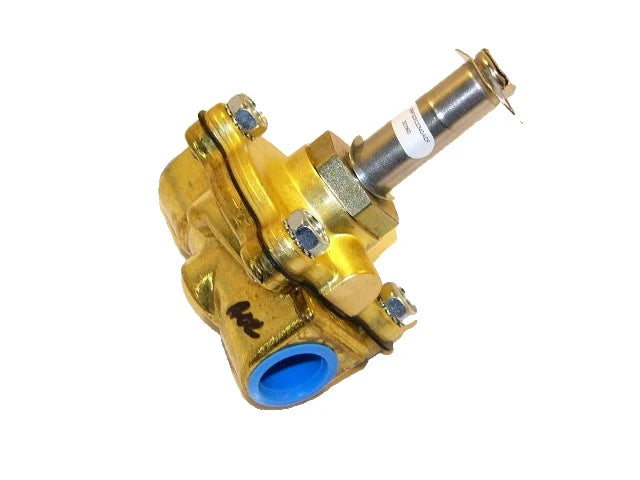

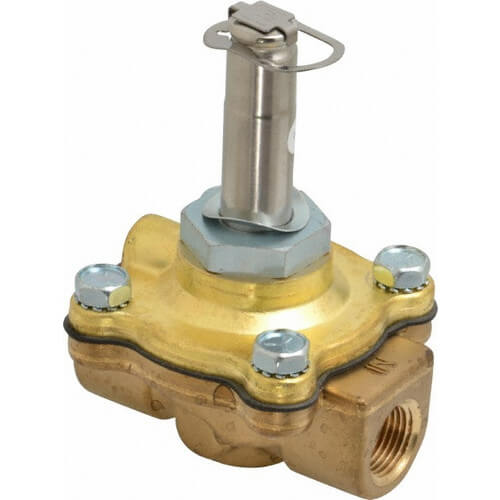

Parker 08FS3C2340ACF Solenoid Valve 1/2 Inch NC Brass

Product Description

The Parker 08FS3C2340ACF Solenoid Valve is a staple in fluid control technology, designed for robust and efficient performance. This valve is constructed with a durable brass body and is engineered to operate in a normally closed (NC) state, enhancing its reliability and suitability for various industrial applications.

• High compatibility with steam and hot water applications, withstanding up to 150 PSI for hot water and 50 PSI for steam.
• Convenient pilot-operated design ensures smooth operational fluidity and enhanced sealing capabilities.
• Designed for temperatures up to 300 degrees Fahrenheit, making it ideal for a wide range of operating environments.

Product Highlights

Featuring a 0.625 inch port size and a 4.0 CV flow capacity, the Parker 08FS3C2340ACF is crafted for optimal performance under high-pressure conditions. It's specifically suitable for HVAC systems and industrial processes involving high temperature fluids.

Product Information

Standard Information

• Brand: Parker Hannifin
• MPN: 08FS3C2340ACF

Technical Specifications

• Body Material: Brass
• Type: 2-Way Normally Closed, Pilot Operated
• Max Working Pressure: 150 PSI
• Flow Capacity: 4.0 CV
• Max Temperature: 300F
• Port Size: 0.625 inches
