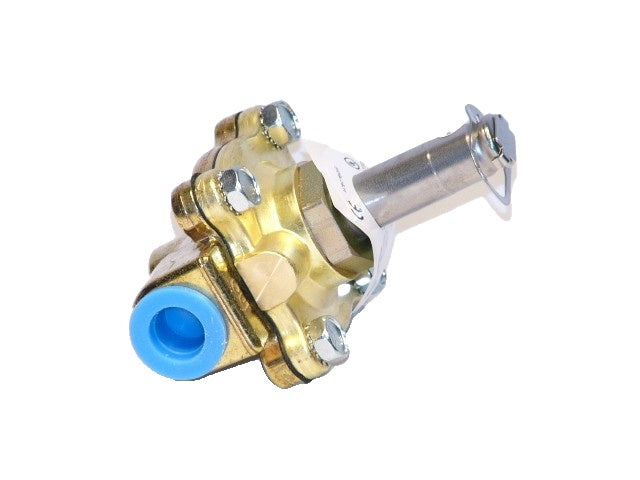

Parker 06F23C2140ACF Solenoid Valve 3/8 inch N/C 0/150 Brass 3.0Cv Replacement 06F23C2142ACF

Product Description

The Parker Hannifin solenoid valve model 06F23C2140ACF features a normally closed 3/8 inch port and operates effectively in systems requiring up to 150 PSI. Port Size NPT Orifice Size Inch Flow Factor Cv Operating Pressure Differential MOPD PSI Watt Max.

• Designed for medium to high-pressure applications.
• Requires a minimum pressure differential for operation.
• Constructed from durable brass, suitable for various industrial applications.

Product Highlights

Parker's brass valves are engineered for reliability in irrigation, fire suppression, and food processing systems. Vertical mounting of the solenoid coil ensures optimal performance.

Product Information

Standard Information

• Material: Brass
• Maximum Temperature: 180F

Technical Specifications

• Connection Type: FNPT x FNPT
• Flow Capacity (Cv): 3.0
• Maximum Pressure (PSI): 150
• Port Size: 3/8 inch
• Operating Temperature Range: Up to 180F
• Weight: 0.49 lbs
• Dimensions (LxWxH): 12.01 x 12.01 x 12.01 inches
