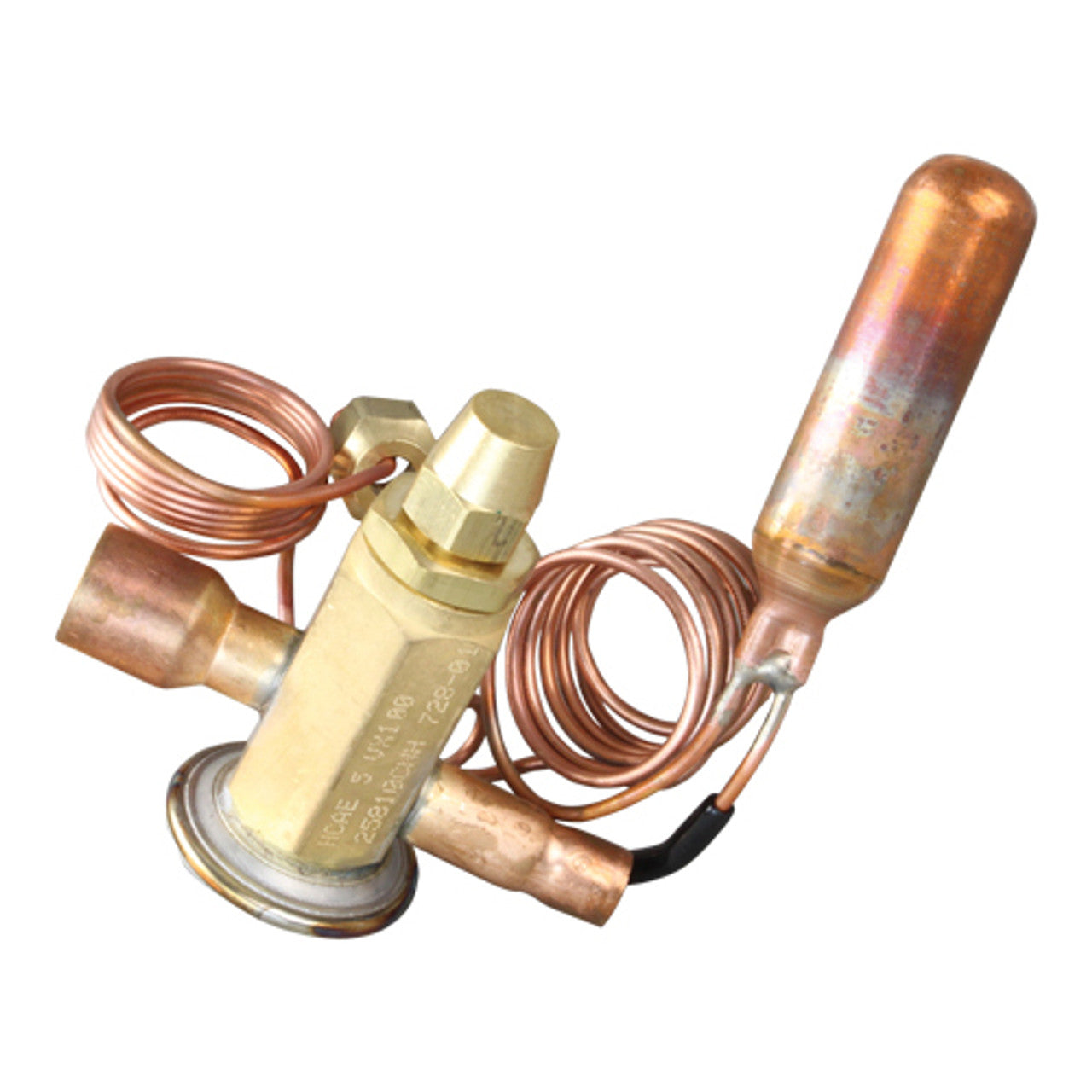

PARKER HANNIFIN 040728-01 Thermal Expansion Valve

Product Description

The PARKER HANNIFIN 040728-01 thermal expansion valve is made for air conditioning and heat pump systems. It works with bi-flow package systems. This valve has female soldered connections and allows field-adjustable superheat. It also includes a built-in check valve that is suitable for heat pump applications using R-22 and R-407C refrigerants. The balanced port design makes it effective for air or water source systems.

• Female soldered connections for easy installation.
• Compatible with R-22 and R-407C refrigerants.
• Designed for efficient heat pump and air conditioning systems.

Product Highlights

A reliable thermal expansion valve for various HVAC applications.

Product Information

Standard Information

• Type: Thermal Expansion Valve
• Refrigerant Type: R-22, R-407C

Technical Specifications

• Connections: Female Soldered X Female Soldered
• Inlet Size: 3/8 inches
• Outlet Size: 5/8 inches
• Ton: 3-1/2 to 5
• Equalizer: 1/4 FL. NUT
• Connection Type: ODF
• Application: Bi-Flow (Package) Systems, Air Conditioning, Heat Pump Systems
