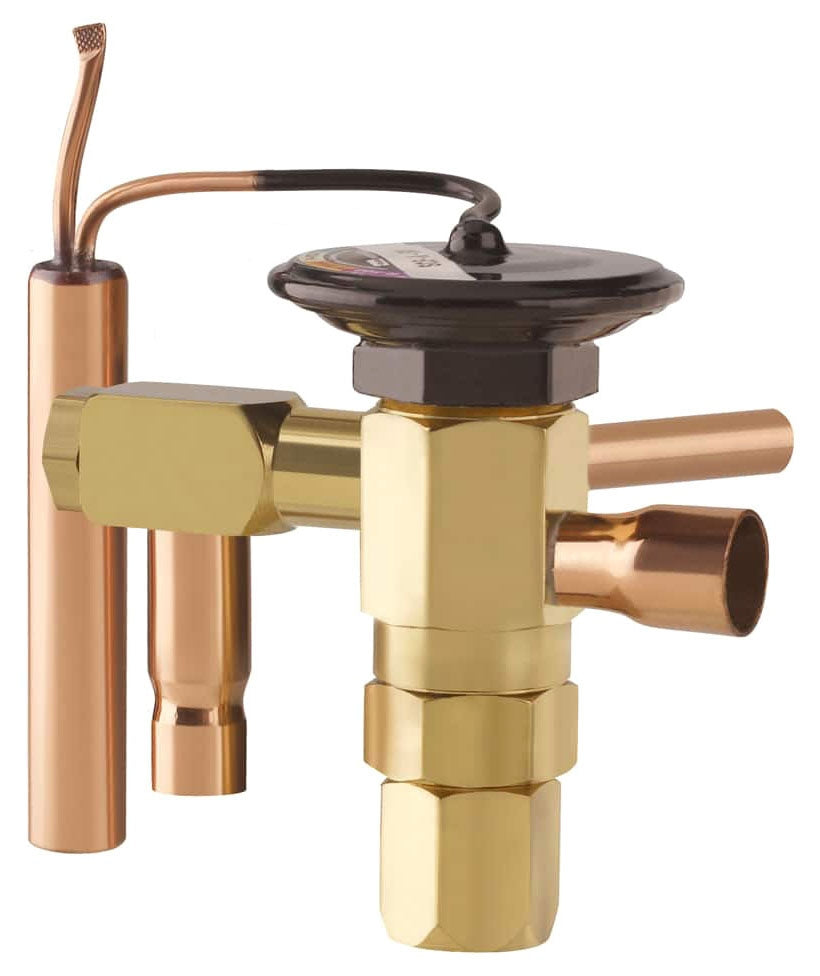

Parker Hannifin 040416-09 3/8 x 1/2, ODF x ODF, R-404A, 450 PSI, Brass, Orifice AA, Charge W, 1/4 ODF Externally Equalized, Thermostatic Expansion Valve with 60 Capillary Tube for 1/4 Ton Air Conditioning Unit

Product Description

The Parker Hannifin expansion valve, model 040416-09, is designed for use with air conditioning systems. This valve is suitable for handling refrigerants such as R-404A. The unit has a pressure rating of four hundred fifty PSI and comes with a sixty-inch capillary tube.

• Designed for air conditioning units up to one quarter ton.
• Includes a removable inlet strainer for easy maintenance.
• Adjustable superheat for optimized performance.

Product Highlights

This expansion valve is built with brass material and features externally equalized connections. It is optimal for supermarket cases and walk-in coolers.

Product Information

Standard Information

• Product ID: 41339
• Manufacturer: Parker Hannifin

Technical Specifications

• Body Material: Brass
• Nominal Size: 3/8 inch x 1/2 inch
• End Connection: ODF x ODF
• Pressure Rating: 450 PSI
• Inclusions: 60 inch capillary tube
• Application: Supermarket cases, self-contained cases, walk-in cooler/freezer, ice machines, salad bars, transport refrigeration
• Refrigerant Type: R-402A, R-402B, R-404A, R-502, R-507
• Orifice Designation: AA
