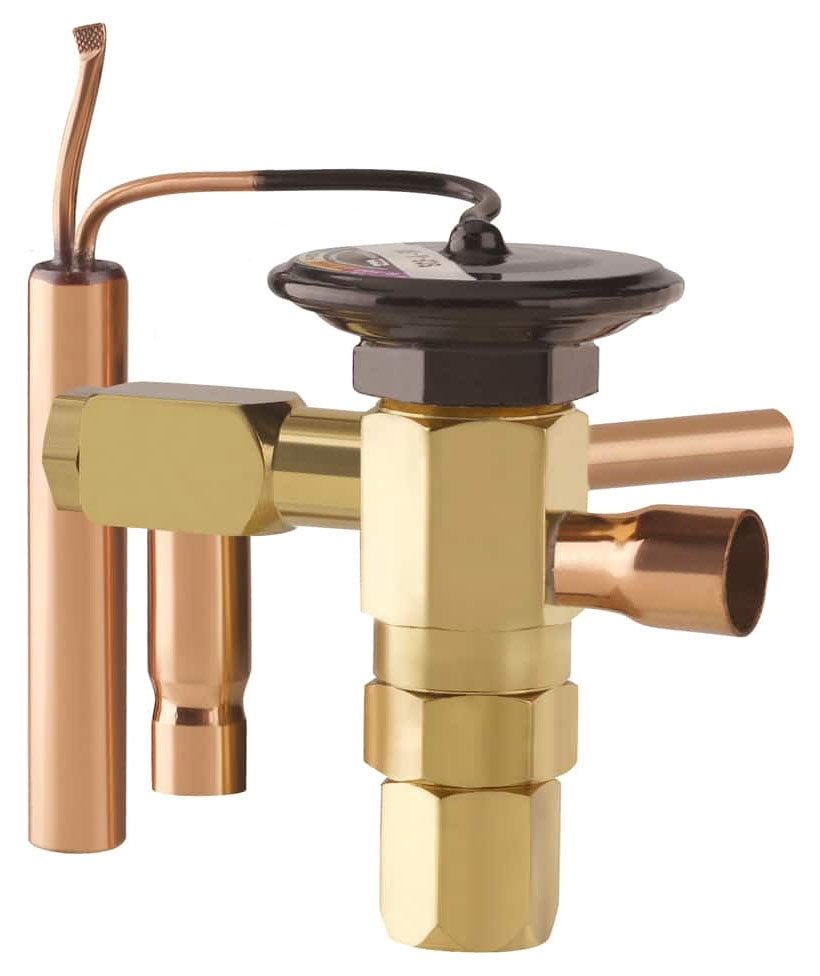

Parker Hannifin 040415-15 3/8 x 1/2, ODF x ODF, R-404A, 450 PSI, Brass, Orifice AAA, Charge Z, 1/4 ODF Externally Equalized, Thermostatic Expansion Valve with 60 Capillary Tube for 1/6 Ton Air Conditioning Unit

Product Description

The Parker Hannifin 040415-15 is a thermostatic expansion valve designed for use in air conditioning systems. It features a nominal size of three-eighths inch by one-half inch and is constructed with a brass body. The valve is suitable for R-404A refrigerant and has a pressure rating of four hundred fifty PSI.

• Type: Externally Equalized
• Capillary Tube: 60 inches
• End Connection: ODF x ODF

Product Highlights

This valve is ideal for supermarket cases, self-contained units, walk-in coolers or freezers, ice machines, salad bars, and transport refrigeration. The selectable refrigerant compatibility includes R-402A, R-402B, R-404A, R-502, and R-507. The balanced port design enhances performance, while the removable power element allows for easy maintenance.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• UPC: 68747267586

Technical Specifications

• Body Material: Brass
• Pressure Rating: 450 PSI
• Nominal Size: 3/8 inch x 1/2 inch
• Application: Supermarket cases, Self-contained cases, Walk-in coolers/freezers, Ice machines, Salad bars, Transport refrigeration
• Orifice Designation: AAA
• Charge: Z
• Equalizer Size: 1/4 inch ODF
• Nominal Capacity: 1/6 ton
