Parker Hannifin 040414-01 3/8 x 1/2, ODF x ODF Expansion Valve

Product Description

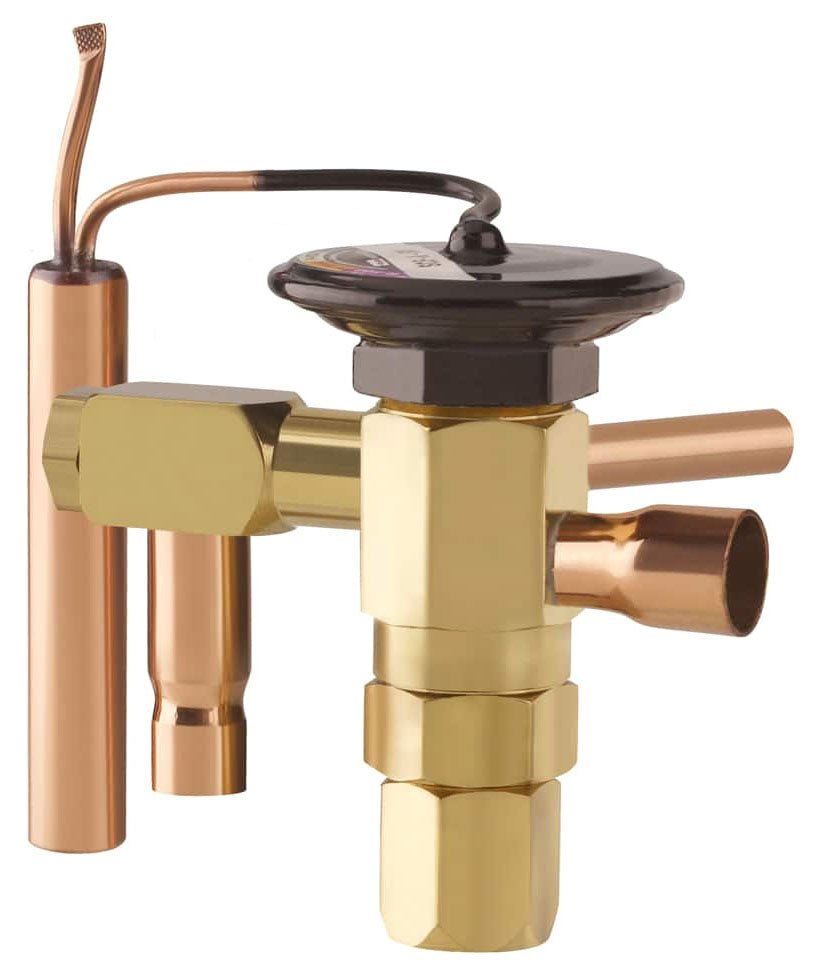

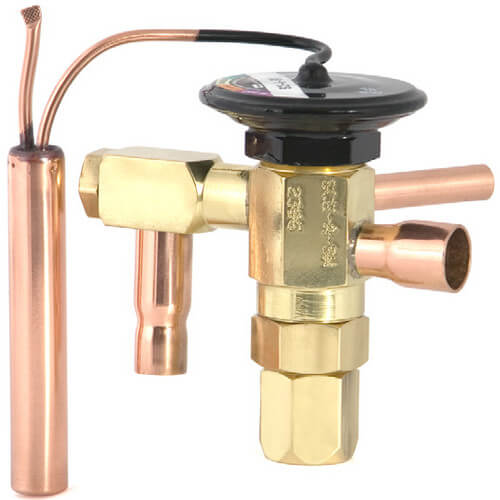

The Parker Hannifin 040414-01 is a thermostatic expansion valve designed for air conditioning and refrigeration systems. It features an externally equalized configuration suited for a variety of applications. This valve is ideal for supermarket cases, walk-in coolers and freezers, and ice machines.

• Body material is brass
• Pressure rating is 450 PSI
• Includes a sixty-inch capillary tube

Product Highlights

This valve includes a removable power element and a strainer, allowing for easy maintenance and enhanced functionality.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• UPC: 68747268870

Technical Specifications

• Nominal Size: 3/8 inch x 1/2 inch
• End Connection: ODF x ODF
• Refrigerant Type: R-12, R-134A
• Orifice Designation: B
• Charge W
• Equalizer Size: 1/4 inch ODF
• Nominal Capacity: 2 Ton
• Applications: Supermarket Case, Self-Contained Case, Walk-In Cooler/Freezer, Ice Machine, Salad Bar, Transport Refrigeration
