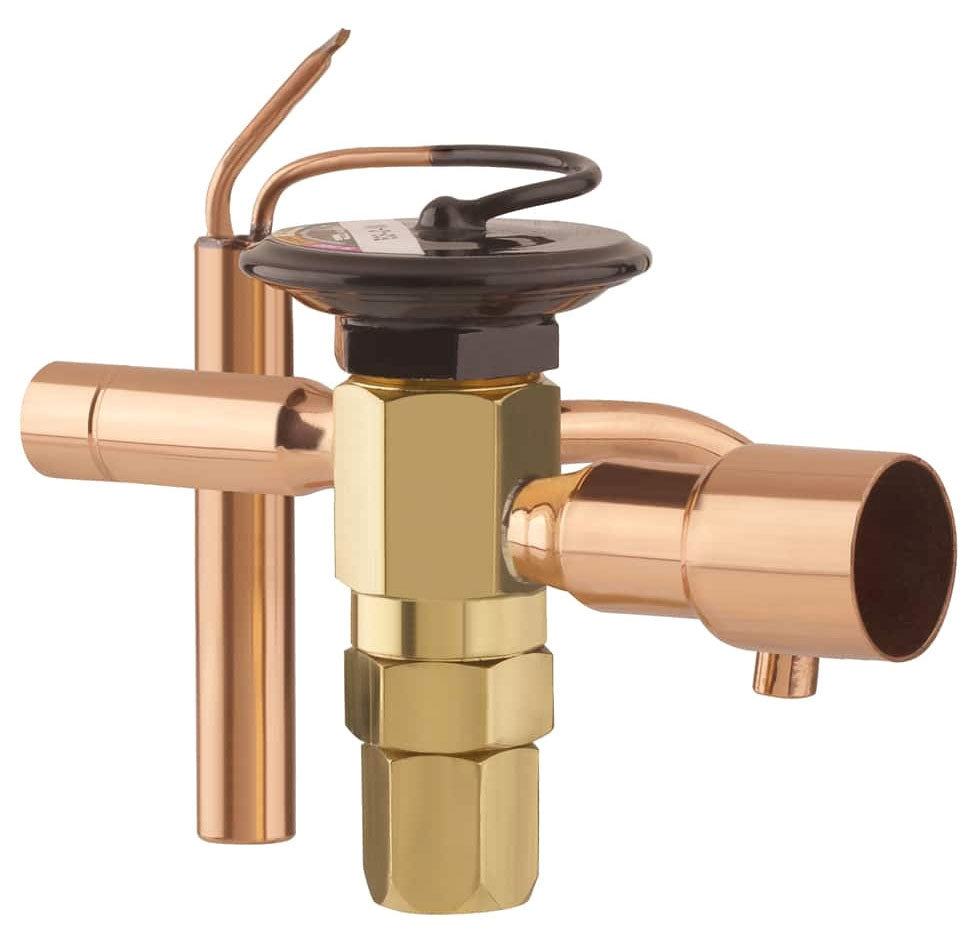

Parker Hannifin 040364-07 3/8 x 1/2 ODF ECE-C-SZ Thermal Expansion Valve (2 to 3-1/2 Tons)

Product Description

The Parker Hannifin thermal expansion valve, MPN 040364-07, is designed for air conditioning and refrigeration systems. This valve features a nominal size of three-eighths inch by one-half inch with ODF connections. The brass body provides durability and the ability to handle high pressure. It operates effectively with R-404A refrigerant and can support capacity needs up to three and a half tons.

• Brass body with extended ODF solder connections.
• Pressure rating of 450 PSI.
• Includes sixty inch capillary tube and removable power element.

Product Highlights

The Parker Hannifin thermal expansion valve is suitable for various applications, including small chillers, air conditioning units, and freezers. It delivers consistent refrigerant flow, crucial for efficient cooling.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Application: Small Chiller, Air Conditioning Unit, Freezer, Walk-In Box, Refrigerated Case, Mobile Refrigeration

Technical Specifications

• Nominal Size: 3/8 Inch x 1/2 Inch
• End Connection: ODF x ODF
• Body Material: Brass
• Pressure Rating: 450 PSI
• Refrigerant Type: R-402A, R-402B, R-404A, R-502
• Equalizer Size: 1/4 Inch ODF
• Nominal Capacity: 3-1/2 Ton
