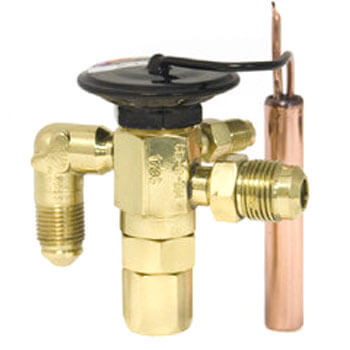

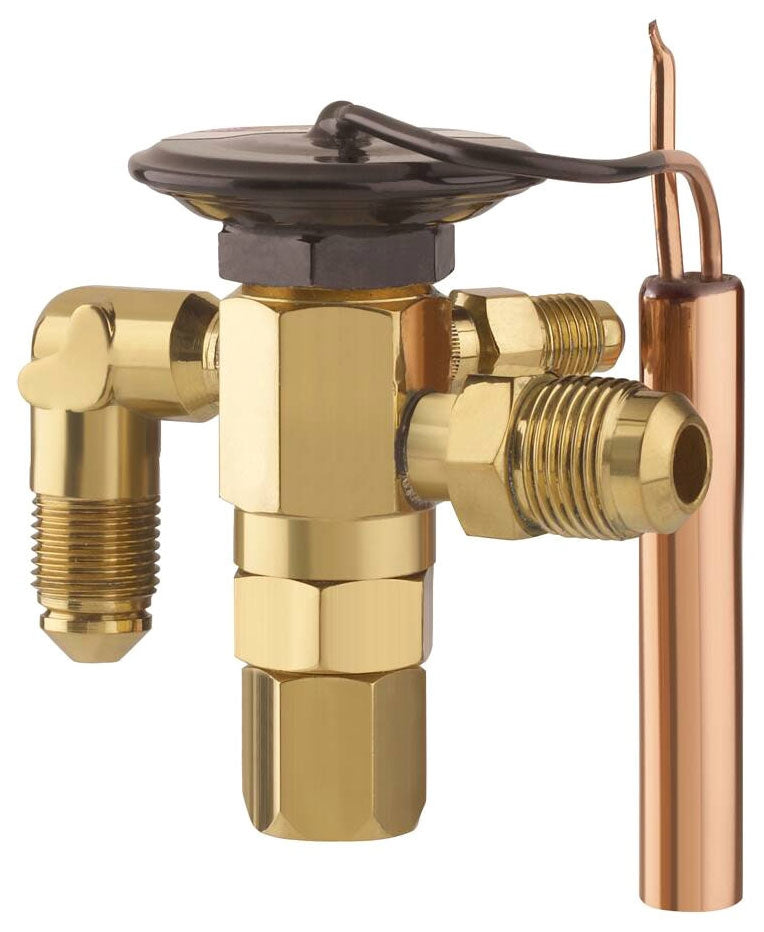

Parker Hannifin 040340-03 3/8 x 1/2 SAE Male Flare x SAE Male Flare Thermostatic Expansion Valve

Product Description

The Parker Hannifin 040340-03 is a thermostatic expansion valve designed for use in air conditioning and refrigeration systems. This valve features externally equalized connections and is ideal for small refrigeration systems, slush machines, and more.

• Balanced port design for varying load conditions.
• Removable power element for easy maintenance.
• Includes a sixty-inch capillary tube for flexible installation.

Product Highlights

This valve is engineered to facilitate optimal performance in air conditioning and refrigeration applications, ensuring reliable operation in small units.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• UPC: 68747250495

Technical Specifications

• Nominal Size: 3/8 inch x 1/2 inch
• End Connection: SAE Male Flare x SAE Male Flare
• Body Material: Brass
• Pressure Rating: 450 PSI
• Refrigerant Types: R-404A, R-402A, R-502
• Nominal Capacity: 3-1/2 Tons
• Inclusions: 60 inch capillary tube, 100 mesh removable strainer
• Type: Interchangeable, Externally Equalized
