Parker Hannifin 040336-03 3/8 x 1/2 SAE Male Flare x SAE Male Flare Replacement MPN

Product Description

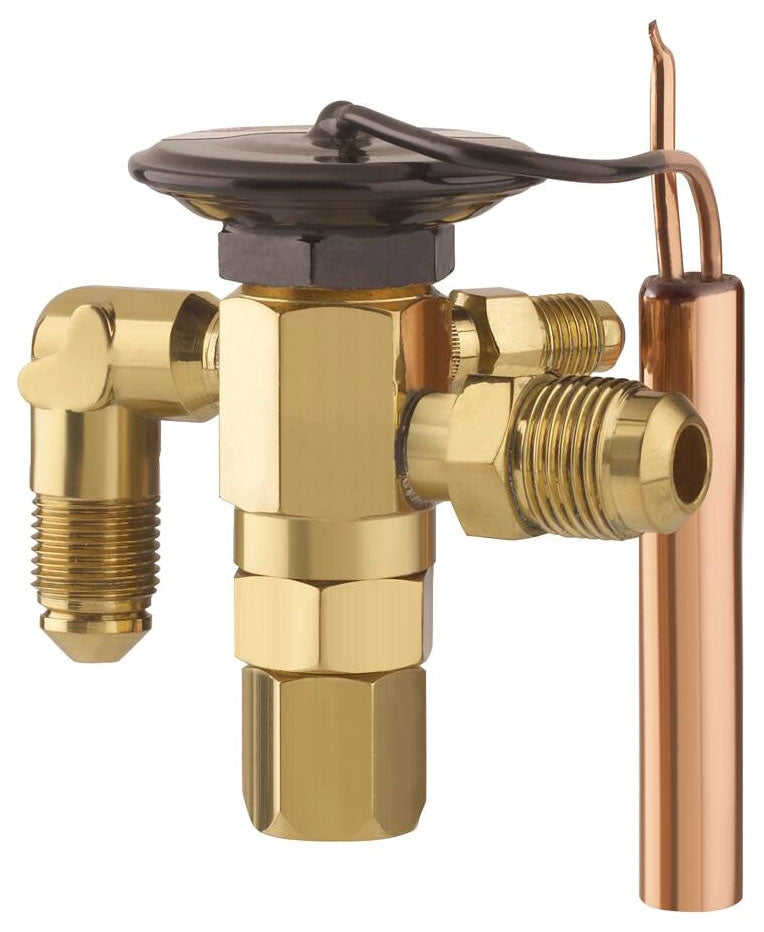

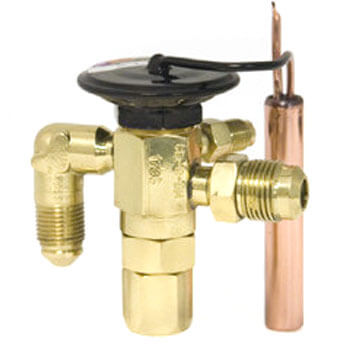

The Parker Hannifin MPN 040336-03 is a thermostatic expansion valve designed for small refrigeration and air conditioning systems. This valve features a balanced port design that allows operation under varying load conditions, ensuring efficient performance. The body is made from brass and features SAE male flare connections for easy integration into systems.

• Designed for R-404A refrigerants
• Rated for pressure up to 450 PSI
• Includes a sixty-inch capillary tube for optimal performance

Product Highlights

This valve is ideal for use in slush machines, walk-in coolers, and transport refrigeration systems. It is adjustable for superheat and includes a removable power element for simple maintenance.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Body Material: Brass

Technical Specifications

• Nominal Size: 3/8 inch x 1/2 inch
• Pressure Rating: 450 PSI
• Refrigerant Types: R-402A, R-402B, R-404A, R-502
• Application: Small Refrigeration System, Slush Machine, Air Conditioning Unit
• Equalizer Size: 1/4 inch SAE Flare
• Nominal Capacity: 1 Ton
• Inclusions/Features: 60 inch capillary tube, removable power element
• Type: Interchangeable, Externally Equalized
