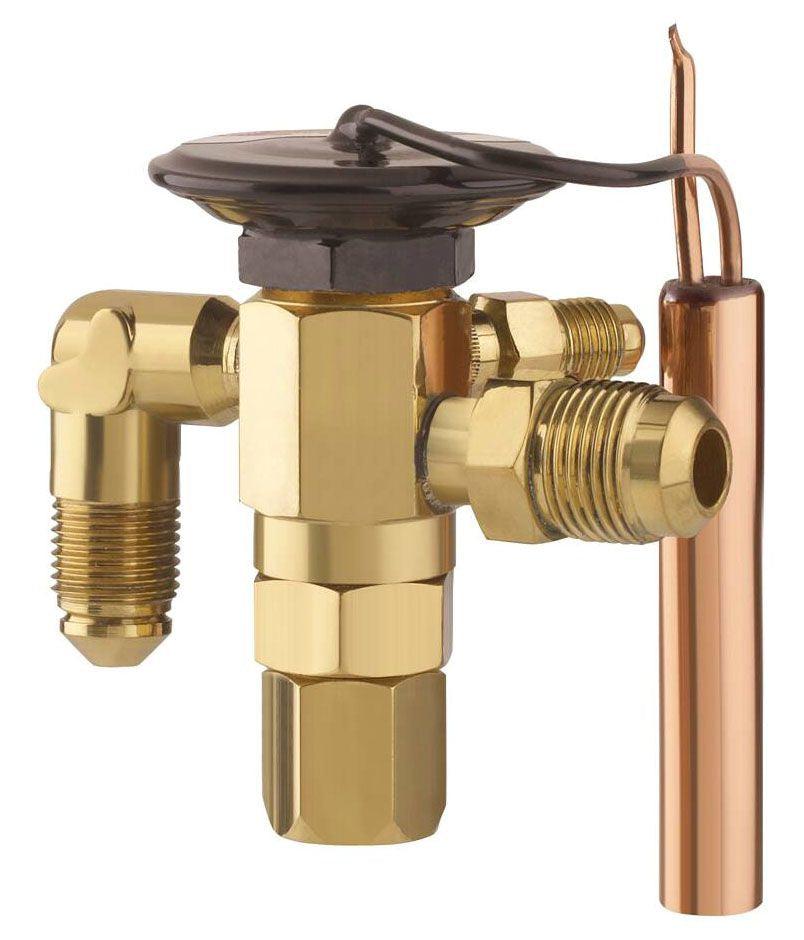

Parker Hannifin 040330-01 Thermostatic Expansion Valve 1/4 inches x 1/2 inches, 450 PSI, Orifice AA

Product Description

The PARKER HANNIFIN 040330-01 is an interchangeable, externally equalized thermostatic expansion valve. Constructed with a brass body, it features a 60-inch capillary tube and a 100 mesh removable power element. This valve is designed for small refrigeration systems, air conditioning units, and transport refrigeration applications using R-12, R-134a, R-401A, and R-401B refrigerants, with a 450 PSI pressure rating.

• Balanced port design
• Removable power element
• Field adjustable superheat

Product Highlights

Designed for refrigeration and air conditioning, this valve features a balanced port design and field-adjustable superheat.

Product Information

Standard Information

• Brand: PARKER HANNIFIN
• Manufacturer Part Number: 040330-01

Technical Specifications

• Application: Small Refrigeration System, Slush Machine, Air Conditioning Unit, Freezer, Walk-In Cooler, Refrigerated Case, Rail and Transport Refrigeration
• Body Material: Brass
• End Connection: SAE Male Flare x SAE Male Flare
• Inclusions/Features: 60 Inch Capillary Tube, 100 Mesh Removable, Removable Power Element
• Nominal Size: 1/4 Inch x 1/2 Inch
• Pressure Rating: 450 PSI
• Type: Interchangeable, Externally Equalized
• Series/Model: CE
• Strainer Type: 100 Mesh Removable
• Evaporator Equalizer Size (Inch): 1/4" SAE
• Inlet Connection: 1/4" SAE
• Refrigerant Type: R-134a
• Thermostatic Charge: W
• Equalizer Method: Externally Equalized
• Outlet Connection: 1/2" SAE
• Maximum Operating Pressure: 450 psi
• Capillary Tube Length: 60 inch
• Product Type: Complete Valve
• Nominal Capacity (ton): AA
