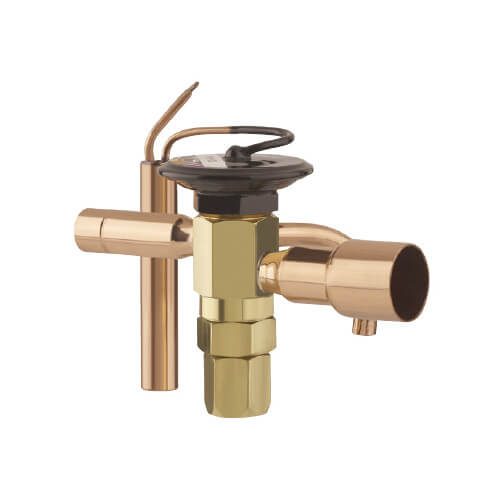

Parker Hannifin 040296-01 3/8 x 1/2 ODF EC-A-JW Thermal Expansion Valve (1/2 to 1 Ton)

Product Description

The Parker Hannifin 040296-01 is a thermal expansion valve designed for use in refrigeration and air conditioning systems. This valve features extended ODF solder connections and a sturdy brass body, enhancing durability and reliability. It operates effectively for capacities ranging from half ton to one ton.

• Extended ODF connections for easy installation
• Balanced port design for optimal performance
• Field adjustable superheat for precise control

Product Highlights

This valve is suitable for various applications, including refrigerated cases, air conditioning, and small chillers.

Product Information

Standard Information

• Inlet Size: 3/8 inches
• Outlet Size: 1/2 inches

Technical Specifications

• Application: Refrigerated Cases, Air Conditioning, Freezers, Small Chillers, Walk-in Boxes
• Refrigerant Type: R-12, R-134A, R-401A, R-401B
• Weight: 1.14 lbs
• Shipping Dimensions: 6.5 inches (depth), 5 inches (width), 3 inches (height)
• Capillary Tube: 60 inches
• External Equalizer: 1/4 ODF
• Rainbow Charges Available
