Parker Hannifin 040290-01 1/4 x 1/2 SAE Male Flare x SAE Male Flare Thermostatic Expansion Valve

Product Description

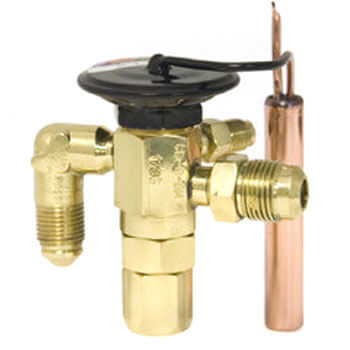

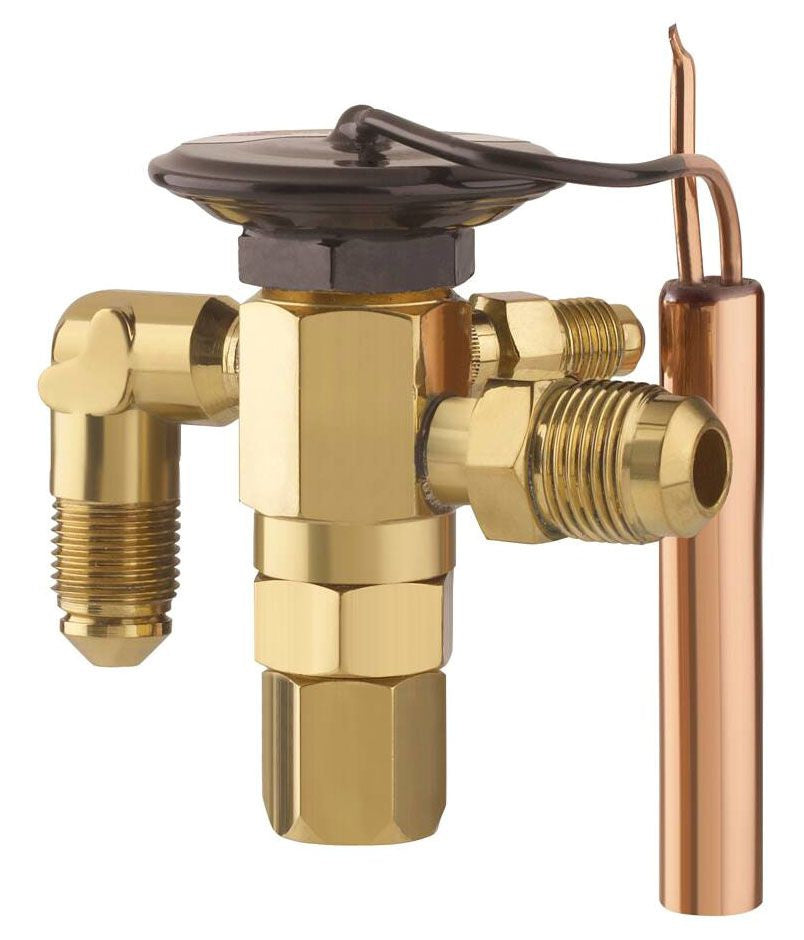

The Parker Hannifin 040290-01 is a thermostatic expansion valve designed for small refrigeration units and air conditioning systems. This model features a brass body and uses a balanced port setup for reliable performance.

• Nominal size of one-fourth inch by one-half inch
• Rated for a pressure of four hundred fifty PSI
• Includes a sixty inch capillary tube

Product Highlights

Ideal for applications like refrigeration systems and air conditioning, it efficiently regulates the refrigerant flow.

Product Information

Standard Information

• Type: Interchangeable, Externally Equalized
• Body Material: Brass

Technical Specifications

• End Connection: SAE Male Flare x SAE Male Flare
• Pressure Rating: 450 PSI
• Refrigerant Type: R-22, R-407C
• Orifice Designation: AA
• Nominal Capacity: 1/2 Ton
• Inclusions: 60 Inch Capillary Tube, 100 Mesh Removable Strainer, Removable Power Element
• Application: Small Refrigeration Systems, Slush Machines, Air Conditioning Units, Freezers, Walk-In Coolers
