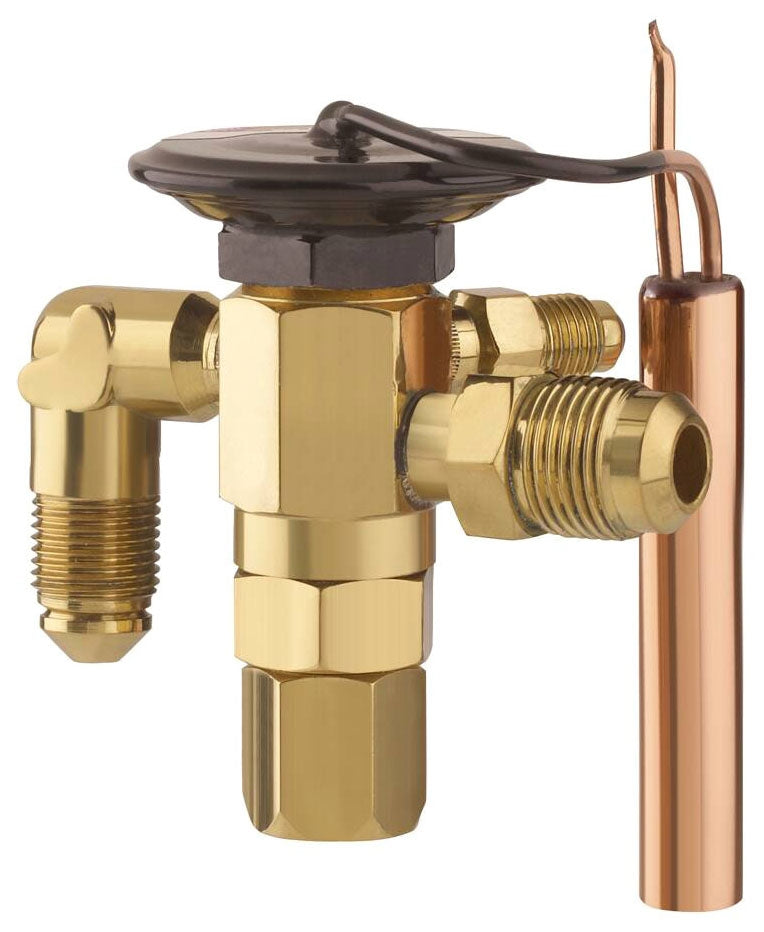

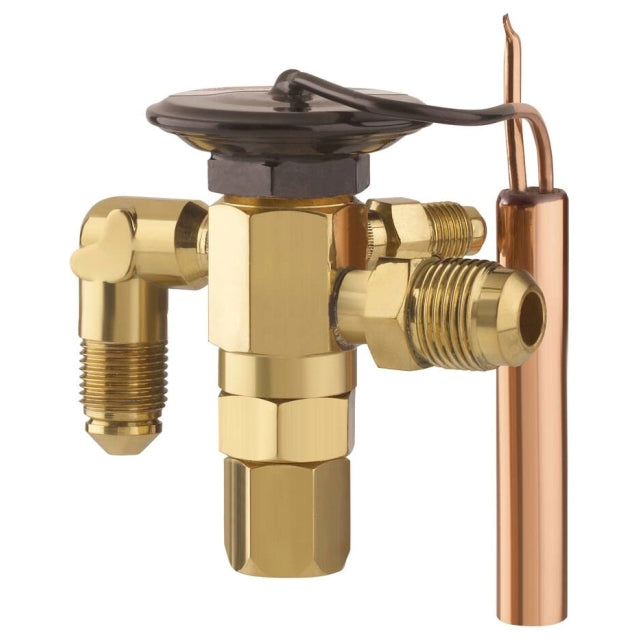

Parker Hannifin 040283-01 Thermostatic Expansion Valve 3 Ton

Product Description

The Parker Hannifin 040283-01 is a thermostatic expansion valve with a nominal size of 3/8 Inch x 1/2 Inch and end connections of SAE Male Flare x SAE Male Flare. Designed for air conditioning units and refrigeration systems, it features a balanced port design and a removable power element. The valve is suitable for refrigerants R-12, R-134a, R-401A, and R-401B.

• Balanced port design
• Removable power element
• Field adjustable superheat

Product Highlights

This thermostatic expansion valve has a brass body, a 60-inch capillary tube, and a 1/4 inch SAE flare externally equalized connection.

Product Information

Standard Information

• Brand: PARKER HANNIFIN
• Manufacturer Part Number: 040283-01

Technical Specifications

• Application: Small Refrigeration System, Slush Machine, Air Conditioning Unit, Freezer, Walk-In Cooler, Refrigerated Case, Rail and Transport Refrigeration
• Body Material: Brass
• End Connection: SAE Male Flare x SAE Male Flare
• Inclusions/Features: 60 Inch Capillary Tube, Removable Power Element
• Nominal Size: 3/8 Inch x 1/2 Inch
• Pressure Rating: 450 PSI
• Type: Externally Equalized
• Series/Model: CE
• Refrigerant Type: R-134A R-401A R-12 R-401B
• Equalizer: 1/4" SAE
• Brand: Parker
• MPN: 040283-01
• Capacity: 3 Ton
