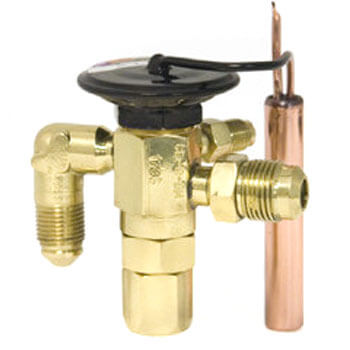

Parker Hannifin 040242-01 3/8 x 1/2 CE-A-VW Thermal Expansion Valve

Product Description

The Parker Hannifin 040242-01 is a thermostatic expansion valve. This valve features a brass body with SAE male flare connections and operates effectively in air conditioning and refrigeration systems.

• Nominal size three-eighths inch by one-half inch
• Supports refrigerants R-22, R-407C
• Pressure rating of four hundred fifty PSI

Product Highlights

This valve is suitable for use in small refrigeration systems, slush machines, and air conditioning units. It includes a sixty-inch capillary tube and a removable power element, making it efficient and easy to service.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• UPC: 68747267809

Technical Specifications

• Nominal Size: 3/8 inch x 1/2 inch
• End Connection: SAE Male Flare x SAE Male Flare
• Body Material: Brass
• Pressure Rating: 450 PSI
• Refrigerant Types: R-22, R-407C
• Nominal Capacity: 1-1/2 Ton
• Equalizer Size: 1/4 inch SAE Flare
• Inclusions/Features: 60 inch capillary tube, removable power element, adjustable superheat
