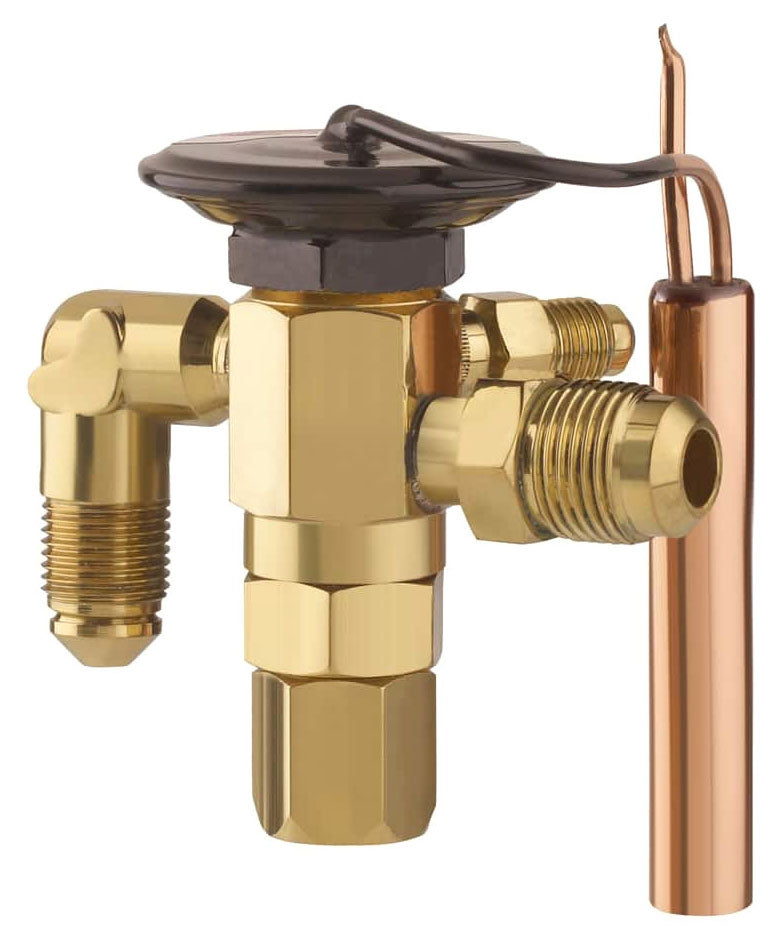

Parker Hannifin 040222-06 3/8 x 1/2 Thermostatic Expansion Valve with 60 Capillary Tube

Product Description

The Parker Hannifin 040222-06 is a thermostatic expansion valve designed for air conditioning and refrigeration systems. This valve features a nominal size of three-eighths inch x one-half inch with SAE flare connections. It operates at a pressure rating of four hundred fifty PSI. The valve is constructed from brass and includes a sixty-inch capillary tube. This product is suitable for use in small refrigeration systems, slush machines, air conditioning units, freezers, and walk-in coolers.

• Nominal size of three-eighths inch x one-half inch
• Pressure rating of four hundred fifty PSI
• Constructed from durable brass material

Product Highlights

This expansion valve is interchangeable and internally equalized for efficient performance. It also features a removable power element for easy maintenance and adjustments.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Refrigerant type: R-22, R-407C, R-422D

Technical Specifications

• Body Material: Brass
• End Connection: SAE Flare x SAE Flare
• Inclusions/Features: 60 Inch Capillary Tube, 100 Mesh Removable, Removable Power Element
• Application: Small Refrigeration System, Slush Machine, Air Conditioning Unit, Freezer, Walk-In Cooler, Refrigerated Case
• Nominal Capacity: 5 Ton
• Orifice Designation: C
• Charge: W
