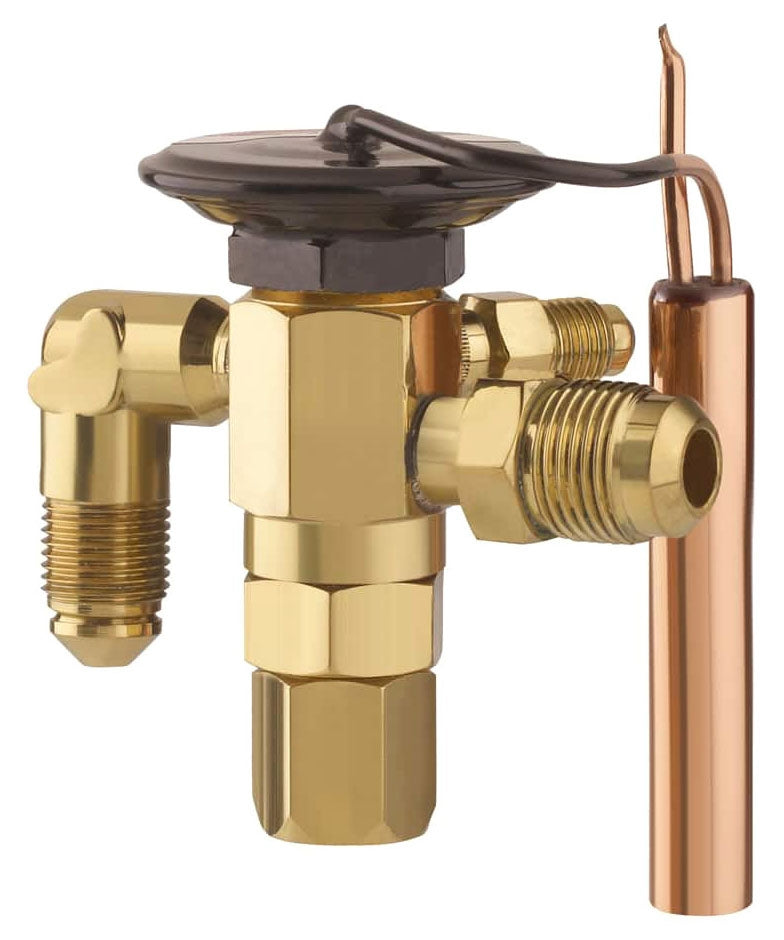

Parker Hannifin 040333-03 1/4 x 1/2 SAE C-AA-SZ Thermal Expansion Valve

Product Description

The Parker Hannifin 040333-03 thermostatic expansion valve is a high-performance solution for small refrigeration and air conditioning systems. This valve has a brass body and uses SAE flare connections. It is designed for systems using R-404A refrigerant and operates at a pressure rating of 450 PSI. It features a balanced port design for stable operation over varying conditions.

• Balanced port
• Removable power element
• Field adjustable superheat

Product Highlights

Thermostatic expansion valve with 60-inch capillary tube for precise temperature control in refrigeration and air conditioning systems. Brass body for durability, internally equalized for stable performance.

Product Information

Standard Information

• Type: Interchangeable, Internally Equalized
• Nominal Size: 1/4 Inch x 1/2 Inch
• End Connection: SAE Flare x SAE Flare
• Body Material: Brass
• Pressure Rating: 450 PSI

Technical Specifications

• Application: Small Refrigeration System, Slush Machine, Air Conditioning Unit, Freezer, Walk-In Cooler, Refrigerated Case, Rail and Transport Refrigeration
• Refrigerant Type: R-404A, R-402B, R-507, R-502, R-402A
• Orifice Designation: AA
• Charge: Z
• Nominal Capacity: 1/4 Ton
• Inclusions/Features: 60 Inch Capillary Tube, 100 Mesh Removable, Removable Power Element
