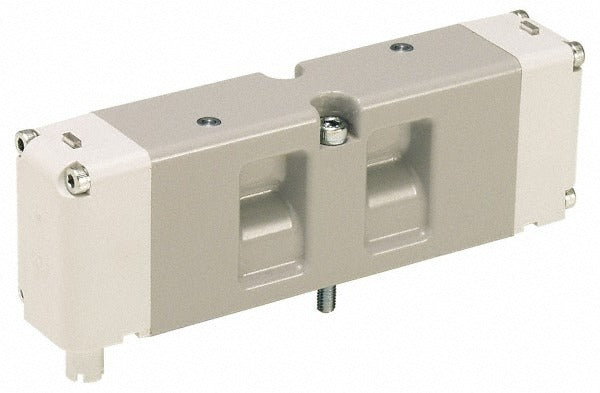

Parker HA6VXBG0G9A Solenoid Valve Bspp 24V Aluminum

Product Description

The PARKER HA6VXBG0G9A is a BSPP-threaded solenoid valve in the center exhaust open (unactuated) configuration. The body is aluminum with a Buna-N seal, making it suited for pneumatic control applications where weight savings and chemical compatibility matter. Operating on 24 volts DC, it provides a Cv rating of 1.000 and a Cv Factor NC of 1.1. The valve meets ISO 1179 specifications and carries an IP65 enclosure rating along with cCSAus approval. It is supplied as an ISO 15407-2 valve less base, requiring a compatible manifold or subbase for mounting. Licensed HVAC, industrial automation, and instrumentation technicians are the primary installers.

This valve is designed for use in pneumatic directional control circuits where a center exhaust open state is required when de-energized. BSPP thread porting makes it appropriate for systems built to ISO and metric standards. The IP65 rating suits it for installations in environments with dust or water spray exposure. The ISO 15407-2 less-base form factor means it is intended for manifold or subbase mounting rather than inline plumbing, which is a common configuration in industrial and commercial pneumatic panels. Minimum working pressure is 35 psi, and the maximum operating temperature is 120 degrees F.

Key Features

• Center exhaust open unactuated state — safe de-energized position for pneumatic control circuits
• BSPP thread standard — compatible with ISO 1179 manifold and subbase ports
• Aluminum body with Buna-N seal — lightweight construction with broad fluid compatibility
• 24 volts DC coil — standard low-voltage control circuit input
• IP65 rated — protected against dust ingress and low-pressure water spray
• cCSAus approved — meets North American safety certification requirements
• ISO 15407-2 less-base design — mounts to compatible manifold or subbase assemblies

Compatibility

Designed for use with BSPP manifold and subbase assemblies meeting ISO 15407-2 specifications. Specific compatible manifolds or subbases were not identified in the available product data; confirm subbase compatibility with the manifold manufacturer before ordering.

Installation Notes

Installation should be performed by a qualified instrumentation or industrial automation technician familiar with pneumatic directional control systems. Shut off and exhaust all system air pressure before removing or installing any valve. Verify that the manifold or subbase port configuration matches the BSPP thread standard before assembly. Electrical connections to the 24-volt DC coil should comply with applicable local electrical codes and the system control schematic.
