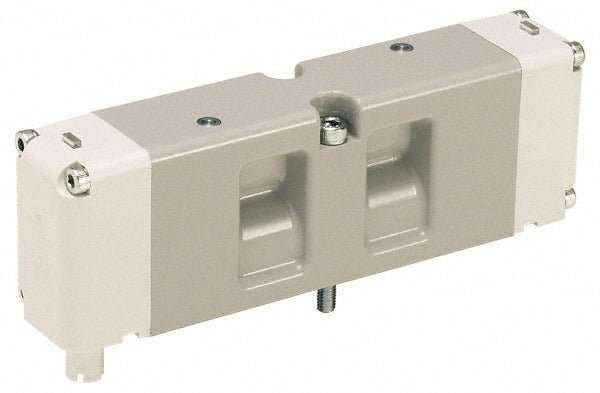

Parker HA6VXBG023A Solenoid Valve 120V Bspp Aluminum

Product Description

The PARKER HA6VXBG023A is a 5-way solenoid valve with a center exhaust open unactuated state, designed for directional control of compressed air and inert gas in pneumatic systems. Built with an aluminum body and Buna-N seals, it operates on 120 VAC and carries a Cv rating of 1.0. The valve conforms to ISO 1179 and ISO 15407-2 specifications and is rated to IP65 for dust and water ingress protection. It is intended for installation by industrial maintenance technicians and pneumatic system integrators working with BSPP manifold and subbase port configurations.

This valve is suited for light industrial and automation applications where BSPP-ported pneumatic control is required. The center exhaust open configuration allows cylinder ports to exhaust to atmosphere when the valve is de-energized, which is a common requirement in pneumatic actuator circuits. It mounts to ISO 15407-2 compatible subbases and manifolds, making it a standard choice for modular pneumatic panel assemblies. Minimum working pressure is 35 psi, and maximum system temperature is 120 degrees F. The cCSAus approval supports use in North American electrical environments.

Key Features

• Center exhaust open unactuated state for controlled actuator de-energization
• 120 VAC coil voltage with cCSAus approval for North American installations
• Aluminum body with Buna-N seals for lightweight durability in pneumatic service
• IP65-rated enclosure resists dust and low-pressure water ingress
• Complies with ISO 1179 and ISO 15407-2 for BSPP manifold and subbase compatibility
• Cv rating of 1.0 supports moderate pneumatic flow requirements

Compatibility

Designed for use with BSPP manifold and subbase ports meeting ISO 1179 and ISO 15407-2 specifications. Specific compatible manifold and subbase part numbers were not provided in available product data.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician. Depressurize the pneumatic circuit and disconnect electrical power before removing or installing the valve. Verify that the subbase or manifold port thread standard matches BSPP before threading connections, and avoid over-torquing fittings into the aluminum body. Electrical connections must comply with applicable local and national electrical codes.
