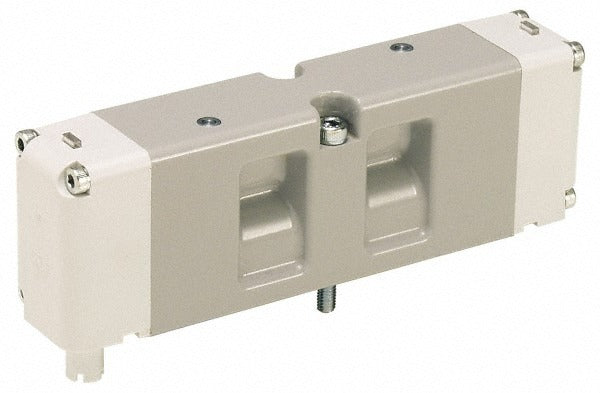

Parker HA5VXBG023A Solenoid Valve Bspp 120V Aluminum

Product Description

The PARKER HA5VXBG023A is a BSPP-ported solenoid valve designed for pneumatic and fluid control applications in industrial and commercial systems. In its unactuated state, all ports are blocked, making it suitable for systems that require a fail-safe closed or neutral position when power is removed. The valve body is constructed from aluminum and uses a Buna-N seal. It operates at 120 volts AC and carries a Cv rating of 1.000, with a minimum working pressure of 35 psi and a maximum temperature of 120 degrees F. Licensed trades and industrial maintenance technicians are the primary installers.

This solenoid valve is built to ISO 15407-2 specifications and is rated as a valve-less-base configuration, meaning it is intended for use with a compatible manifold or subbase. The BSPP thread standard and ISO 1179 port dimensions make it suitable for subbase-mounted pneumatic circuit assemblies in manufacturing, process control, and automation environments. The IP65 rating provides protection against dust ingress and low-pressure water jets, supporting use in wet or particulate-heavy environments.

Key Features

• All-ports-blocked unactuated state for fail-safe neutral positioning
• Aluminum body construction for lightweight, corrosion-resistant performance
• Buna-N seal material compatible with a broad range of pneumatic media
• 120V AC coil voltage for standard industrial power circuits
• IP65-rated enclosure for dust and water resistance
• cCSAus approved and ISO 1179 compliant BSPP manifold and subbase ports

Compatibility

Designed for use with ISO 15407-2 compliant manifolds and subbases using BSPP port threading per ISO 1179 specifications. Specific subbase and manifold compatibility should be verified against the PARKER valve series documentation prior to installation.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic circuit assembly and industrial electrical codes. De-energize and depressurize the system fully before removing or installing the valve. Verify that the subbase or manifold port threading matches the BSPP standard before mounting. Confirm coil voltage matches the supply circuit before energizing.
