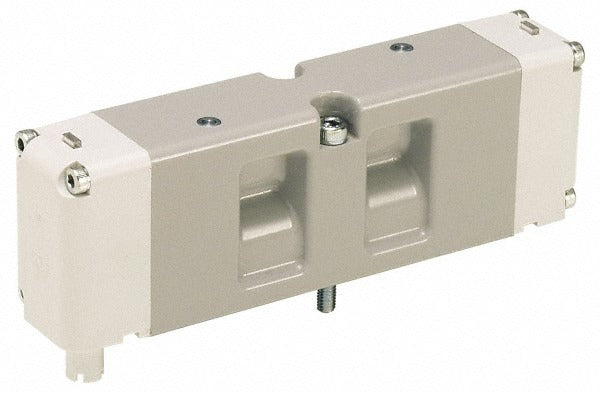

Parker HA2VXBG0G9A 4-way 2-position Solenoid Valve 24vdc

Product Description

The PARKER HA2VXBG0G9A is a 4-way, 2-position directional control solenoid valve designed for pneumatic circuit control in industrial and commercial automation systems. It operates at 24 volts DC and features a normally open state through ports 1 and 2, allowing flow to pass in the de-energized condition. The aluminum body keeps weight low at 0.72 pounds, while the Buna-N seal material provides reliable performance across a broad range of air and compatible media applications. Licensed HVAC technicians, pneumatic system integrators, and industrial maintenance professionals typically install and service this valve type.

This valve is suited for use in pneumatic directional control applications where a BSPP-ported manifold or subbase mounting configuration is required. It conforms to ISO 15407-2 specifications and is rated for valve-less-base installation, meaning it must be paired with a compatible ISO 15407-2 subbase or manifold. The minimum working pressure is 25 psi, and the maximum operating temperature is 120 degrees F. The Cv rating of 1.1 makes it appropriate for moderate-flow pneumatic circuits in both OEM equipment builds and field replacement scenarios.

Key Features

• 4-way, 2-position directional control with normally open state through ports 1 and 2
• 24 volts DC coil voltage for low-voltage control circuit compatibility
• Aluminum body construction for lightweight, corrosion-resistant service
• Buna-N seal material for dependable sealing with air and common pneumatic media
• Cv rating of 1.1 for moderate-flow pneumatic circuit applications
• IP65 rated enclosure and cCSAus approved for use in demanding environments

Compatibility

Designed for use with ISO 15407-2 compliant subbases and manifolds using BSPP ported connections. Subbase or manifold must be sourced separately. Ports meet BSPP manifold and subbase specifications per ISO 1179.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Depressurize and de-energize the pneumatic circuit fully before removing or installing any directional control valve. This valve requires a compatible ISO 15407-2 subbase or manifold and does not include a base. Verify coil voltage matches the control circuit supply before energizing.
