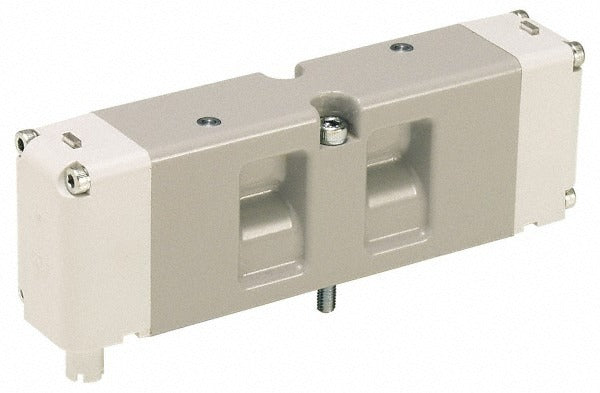

Parker HA1VXBG023A 4-way 2-position Solenoid Valve

Product Description

The PARKER HA1VXBG023A is a 4-way, 2-position solenoid valve designed for directional control of pneumatic or hydraulic circuits. It ships in a normally open state through ports 1 and 2, switching to the alternate flow path when the solenoid is energized at 120 volts AC. The body is cast aluminum with a Buna-N seal, making it suitable for use with air and a range of compatible media. The valve carries a Cv rating of 1.100 and requires a minimum working pressure of 25 psi. It follows ISO 15407-2 specifications and is rated to IP65 for protection against dust and water ingress. Installation requires a compatible BSPP manifold or subbase conforming to ISO 1179 and ISO 15407-2 standards.

This valve is used in industrial and commercial fluid power applications where directional control is required. It fits into manifold-based pneumatic circuit assemblies and is suited for automated machinery, process equipment, and control panel installations. The BSPP thread standard makes it compatible with subbase and manifold mounting systems built to ISO 1179 and ISO 15407-2 specifications. Licensed instrumentation or fluid power technicians typically handle installation in production and process control environments.

Key Features

• 4-way, 2-position directional control with normally open state through ports 1 and 2
• 120 volts AC solenoid actuation
• Cv rating of 1.100 for consistent flow performance
• Aluminum body with Buna-N seal for lightweight, corrosion-resistant construction
• IP65 rated for protection against dust and directed water spray
• cCSAus approved; meets ISO 1179 and ISO 15407-2 specifications
• ISO 15407-2 valve less base configuration for subbase or manifold mounting

Compatibility

Designed for use with BSPP manifold and subbase assemblies that meet ISO 1179 and ISO 15407-2 specifications. Confirm subbase thread standard and valve station configuration before installation.

Installation Notes

This valve must be installed on a compatible ISO 15407-2 subbase or manifold — it is supplied without a base. De-energize and depressurize the circuit completely before removing or installing any directional control valve. A licensed fluid power or instrumentation technician should verify port orientation, media compatibility, and wiring to the solenoid coil. Electrical connections to the 120 volt AC coil must comply with applicable local electrical codes.
