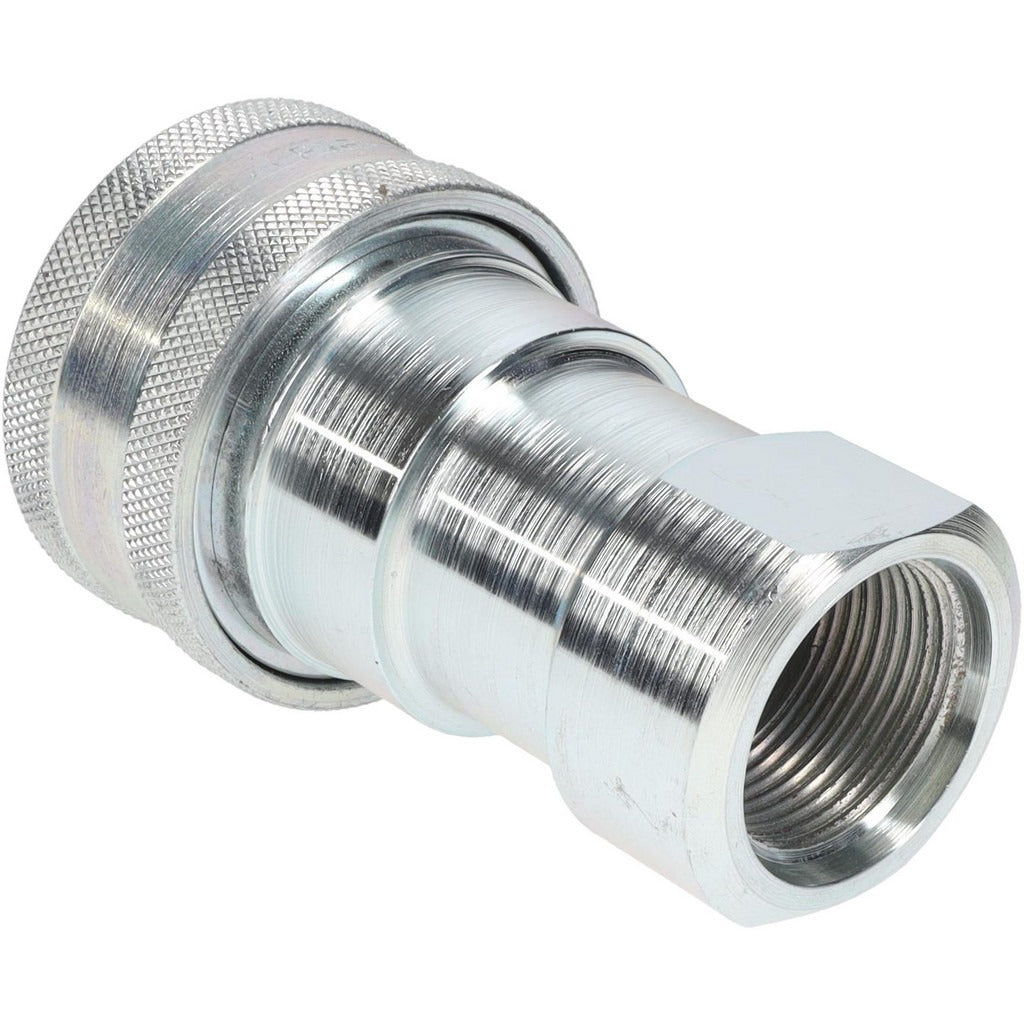

Parker H8-62-T16 Hydraulic Hose Coupler 2000 Psi 1 in

Product Description

The PARKER H8-62-T16 is a female straight thread hydraulic hose coupler rated for 2,000 psi maximum working pressure. Machined from steel with an SAE ORB (O-Ring Boss) shaft type, it provides a reliable threaded connection in demanding hydraulic circuit applications. The coupler measures 4.18 inches in overall length with a 1-inch body diameter and accepts a 1-5/16-12 thread size. It supports a maximum flow rate of 50.00 GPM (189.00 LPM). Licensed hydraulic technicians and industrial maintenance mechanics install this fitting on high-pressure fluid lines across mobile and stationary equipment.

The H8-62-T16 is suited for a broad range of fluid power and industrial applications including industrial hydraulic lines, mobile equipment hydraulic circuits, food and chemical processing lines, gas lines, and water and coolant lines. Its straight body profile makes it appropriate for inline hose terminations where a direct, low-profile connection is needed. The Series 60 design and threaded connection type support secure assembly in environments where vibration and pressure fluctuation are common.

Key Features

• 2,000 psi maximum working pressure for demanding hydraulic service
• SAE ORB shaft type for leak-resistant O-ring face sealing at the thread interface
• Steel construction for durability in high-pressure and chemically active fluid environments
• Maximum flow rate of 50.00 GPM (189.00 LPM) supports high-volume hydraulic circuits
• Straight coupler shape with 1-5/16-12 thread size for direct inline hose connections
• Meets ISO 7241-1 Series B standards for hydraulic quick-release coupling interchangeability

Compatibility

Designed for use with food and chemical processing systems, gas lines, industrial hydraulic lines, mobile equipment hydraulic circuits, and water and coolant lines. Conforms to ISO 7241-1, Series B standards.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic. Depressurize and isolate the hydraulic system fully before removing or installing any fittings. Inspect the O-ring seating surface for nicks or contamination prior to assembly, as surface damage will compromise the SAE ORB seal. Follow the equipment manufacturer's assembly procedures and applicable industry standards for hydraulic fitting torque and fluid compatibility.
