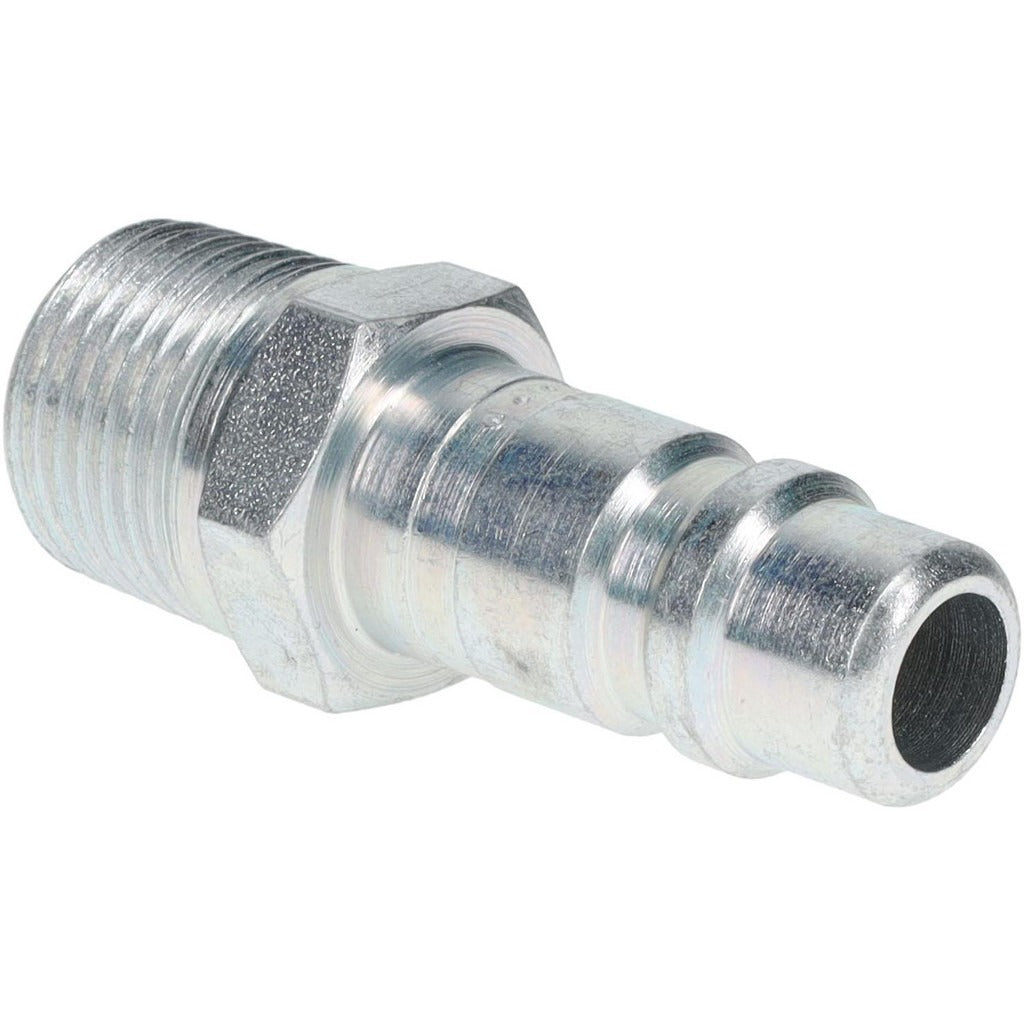

Parker H2F Pneumatic Hose Coupling 1/2 Inch Body

Product Description

The PARKER H2F is a steel pneumatic hose coupling designed for industrial compressed-air and pneumatic systems. It uses a 1/2-14 MNPT threaded connection and features a 1/2-inch body diameter, making it a standard fit for Industrial Interchange-style quick-connect setups. With a maximum working pressure of 300 psi and a zinc chromate finish for corrosion resistance, this connector is built for durable service in demanding shop and field environments. Installation is straightforward for any technician familiar with threaded pneumatic fittings.

This coupling is suited for Industrial Interchange pneumatic systems commonly found in manufacturing facilities, maintenance shops, and industrial service environments. It functions as a connector-type coupler, joining air lines or tools to supply lines via standard NPT thread. The zinc chromate finish adds protection against rust and oxidation in environments where moisture contact is possible. It ships individually and is sold as a single unit.

Key Features

• 1/2-14 MNPT thread for standard NPT compatibility
• 1/2-inch body diameter — Industrial Interchange style
• 300 psi maximum working pressure
• Steel construction with zinc chromate finish for corrosion resistance
• Overall length of 2.48 inches with 0.88-inch hex size
• Threaded connection type for secure, leak-resistant assembly

Compatibility

Designed as an OEM-style replacement or direct-fit connector for Industrial Interchange pneumatic quick-connect systems using 1/2-inch NPT threaded fittings.

Installation Notes

Installation is performed by qualified pneumatic or mechanical technicians. Before servicing any pneumatic line, depressurize the system completely and verify zero pressure at the connection point. Apply thread sealant tape or compound rated for pneumatic use to the MNPT threads prior to assembly. Torque to fitting manufacturer guidelines using an appropriately sized wrench on the 0.88-inch hex.
