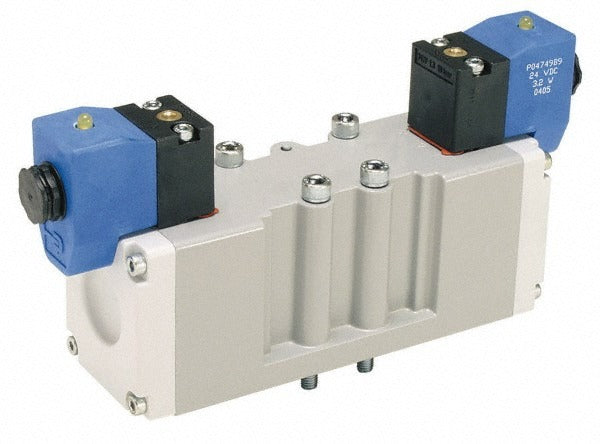

Parker H26VXBG023D Solenoid Valve Bspp 120V Pneumatic

Product Description

The PARKER H26VXBG023D is a BSPP-threaded solenoid valve engineered for pneumatic circuit control in industrial and commercial applications. In its unactuated state, the valve defaults to a center exhaust open position, allowing downstream pressure to vent when the coil is de-energized. The valve body is constructed from aluminum for a favorable strength-to-weight ratio, and the nitrile seals provide reliable performance across a wide operating temperature range of 5 degrees F to 120 degrees F. Operating at 120 volts AC, this valve is installed by licensed industrial maintenance technicians and pneumatic systems specialists in compressed-air control circuits.

This valve is suited for pneumatic directional control applications where a center exhaust open condition is required on signal loss. The BSPP thread standard and subbase port design make it compatible with BSPP manifold and subbase assemblies meeting ISO 1179 specifications. It is commonly found in factory automation, process control, and industrial fluid power systems requiring a compact aluminum-body directional control valve with a rated flow coefficient (Cv) of 2.8. The IP65 environmental protection rating makes it appropriate for installations where dust ingress or water jets may be a concern.

Key Features

• Center exhaust open unactuated state — vents downstream pressure when de-energized
• BSPP thread standard with manifold and subbase ports meeting ISO 1179 specifications
• Aluminum body construction for lightweight durability in pneumatic service
• Nitrile seals rated for operation from 5 degrees F to 120 degrees F
• IP65 rated for protection against dust and directed water
• cCSAus approved for use in North American installations

Compatibility

Designed for use with BSPP manifold and subbase port assemblies meeting ISO 1179 specifications in pneumatic directional control applications.

Installation Notes

Installation should be performed by a qualified industrial technician or pneumatic systems specialist. De-energize the circuit and isolate all compressed-air supply lines before removing or installing this valve. Confirm BSPP thread engagement is correct and that mating subbase or manifold ports conform to ISO 1179 before applying system pressure. Follow applicable facility lockout/tagout procedures and local electrical codes when connecting the 120-volt AC coil wiring.
