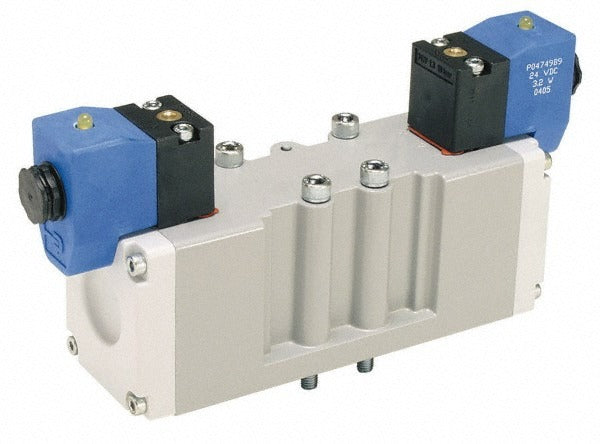

Parker H22VXBG0B9D 4-way 2-position Solenoid Valve Bspp

Product Description

The PARKER H22VXBG0B9D is a 4-way, 2-position solenoid valve designed for pneumatic control applications. In its unactuated state, the valve is normally open through ports 1 and 2, providing fail-safe flow continuity when de-energized. The valve body is constructed from aluminum with a nitrile seal, and it operates on 24 volts DC. With a Cv rating of 3.0, it delivers reliable flow capacity for standard pneumatic circuits. The BSPP thread standard ensures compatibility with British Standard Parallel Pipe connections. This valve is rated IP65 for dust and water ingress protection and meets ISO 1179 specifications. Licensed HVAC and pneumatic control technicians are the typical installers for this type of directional control valve.

This valve is suited for industrial and commercial pneumatic systems where directional control of compressed air or inert gas is required. Its normally open configuration through ports 1 and 2 makes it appropriate for applications that require flow in the default de-energized state. The operating temperature range of 5 degrees F to 120 degrees F accommodates most indoor and sheltered outdoor pneumatic installations. The BSPP port standard is common in fluid power systems following ISO 1179 manifold and subbase port specifications, making it a practical fit for international and metric-standard pneumatic assemblies.

Key Features

• 4-way, 2-position directional control for pneumatic circuits
• Normally open through ports 1 and 2 in unactuated state
• 24 volts DC coil voltage for low-voltage control circuit integration
• Cv rating of 3.0 for consistent flow performance
• Aluminum body with nitrile seal for lightweight, chemical-resistant construction
• IP65 rated and cCSAus approved for use in demanding environments
• Meets ISO 1179 and BSPP manifold and subbase port specifications

Compatibility

Designed for BSPP manifold and subbase port configurations meeting ISO 1179 specifications. Suitable for pneumatic directional control systems requiring a 4-way, 2-position solenoid valve with 24 volts DC actuation.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial controls technician. Depressurize the pneumatic system completely and disconnect electrical power before removing or installing any solenoid valve. Verify that the control circuit voltage matches the 24 volts DC coil rating before energizing. BSPP threaded connections require proper thread sealant compatible with the system media and should not be overtightened to avoid body damage.
