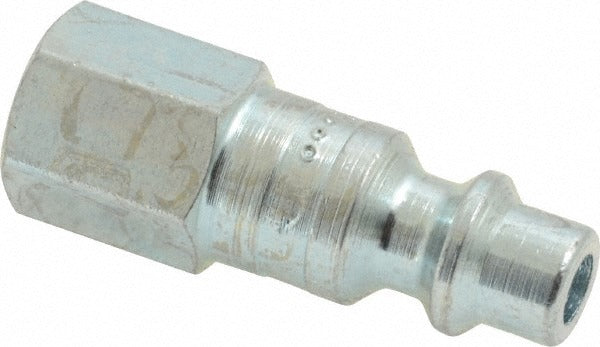

Parker H1C Female Nptf Pneumatic Hose Connector 1/4 in

Product Description

The PARKER H1C is a female NPTF industrial pneumatic hose connector designed for compressed-air and pneumatic fluid-power lines. Built from steel with a zinc chromate finish, it provides corrosion resistance in demanding shop and field environments. The 1/4-inch body diameter accepts standard quick-connect couplings, and the 1/8-27 NPTF threaded port creates a pressure-tight, dryseal connection without the need for additional sealant tape in most applications. This fitting is installed by HVAC technicians, industrial maintenance mechanics, and plumbers working on pneumatic control and supply lines.

The H1C is suited for light-duty to medium-duty pneumatic systems in residential, commercial, and light industrial settings. Typical applications include air compressor manifolds, pneumatic tool lines, and control-air circuits where a reliable female threaded inlet connector is required. The 1/8-27 NPTF thread size is common in smaller-bore pneumatic circuits and instrument air lines, making this connector a frequent service replacement in those systems.

Key Features

• 1/8-27 NPTF female port provides a dryseal threaded connection for leak-free pneumatic service
• 1/4-inch body diameter fits standard industrial pneumatic quick-connect coupling sockets
• Steel construction with zinc chromate finish for corrosion resistance in shop environments
• Threaded connection type allows tool-tightened, removable installation without permanent crimping
• Compact connector profile suits tight-clearance pneumatic manifolds and panel-mount applications

Compatibility

Designed as an OEM-style replacement connector for industrial pneumatic quick-disconnect systems using 1/4-inch body couplings with 1/8-27 NPTF female threaded ports.

Installation Notes

Installation is typically performed by a licensed HVAC technician, pipefitter, or qualified maintenance mechanic. Depressurize and lock out the pneumatic circuit completely before removing or installing any connector. NPTF dryseal threads are designed to seal on the thread form itself, but inspect threads for damage before assembly and apply thread sealant per the system manufacturer's recommendation if required. Follow applicable ASME and OSHA pneumatic safety guidelines during service.
