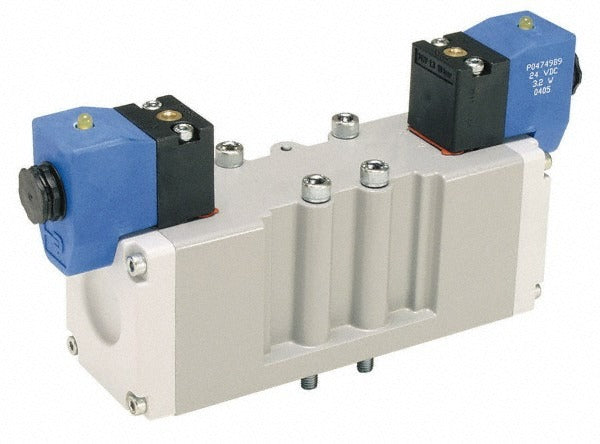

Parker H16VXBG0B9D Solenoid Valve Bspp 24V Dc Pneumatic

Product Description

The PARKER H16VXBG0B9D is a pneumatic solenoid valve with a center exhaust open unactuated state, designed for directional control of compressed air in industrial and commercial pneumatic systems. The valve body is constructed from aluminum and uses a nitrile seal, making it suitable for a wide range of pneumatic media. It operates on 24 volts DC and carries a Cv rating of 1.2, providing reliable flow capacity for actuator control applications. The BSPP thread standard ensures compatibility with metric pneumatic manifolds and subbase porting systems. This valve is installed by industrial maintenance technicians, HVAC controls specialists, and pneumatic system integrators.

The H16VXBG0B9D is intended for pneumatic control applications where a solenoid-actuated directional valve is required. Its center exhaust open configuration means that in the unactuated state, the valve exhausts to atmosphere at the center port, which is a common requirement for cylinder control and fail-safe circuit designs. The BSPP manifold and subbase port configuration makes it a direct fit for manifold-mounted pneumatic systems following ISO 1179 specifications. Rated for operating temperatures from 5 degrees F to 120 degrees F, it is suited for standard indoor industrial environments.

Key Features

• Center exhaust open unactuated state for fail-safe pneumatic circuit designs
• BSPP thread standard with manifold and subbase ports meeting ISO 1179 specifications
• 24 volt DC coil voltage for integration with standard industrial control circuits
• Cv rating of 1.2 for consistent directional flow control in pneumatic actuator applications
• Aluminum body construction for lightweight installation
• Nitrile seal material compatible with standard compressed air service
• IP65 rated for dust-tight and water-jet resistant protection in demanding environments
• cCSAus approved for use in North American applications

Compatibility

Designed for use with BSPP manifold and subbase pneumatic systems meeting ISO 1179 specifications. Suitable for pneumatic directional control applications operating within the rated temperature and voltage parameters.

Installation Notes

Installation should be performed by a qualified industrial or pneumatic systems technician. De-energize the control circuit and depressurize the pneumatic system fully before removing or installing the valve. Verify that the supply voltage matches the 24 volt DC coil rating before energizing. Consult applicable pneumatic system codes and the manufacturer documentation for manifold torque and porting requirements.
