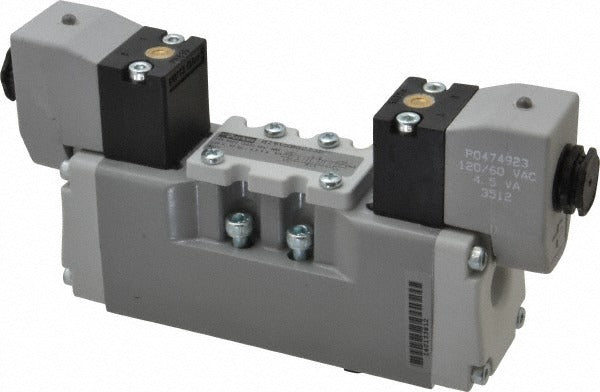

Parker H16VXBG023D Solenoid Valve Bspp 120V Pneumatic

Product Description

The PARKER H16VXBG023D is a BSPP-threaded pneumatic solenoid valve with a center exhaust open unactuated state. The body is cast aluminum with a nitrile seal, making it well suited for general-purpose pneumatic control applications. It operates on 120 VAC and carries a Cv rating of 1.2, which defines its flow capacity under standard conditions. The valve is IP65 rated for dust-tight and water-resistant performance, and it meets ISO 1179 specifications for BSPP manifold and subbase port dimensions. It is cCSAus approved for use in North American installations. Licensed HVAC technicians, industrial mechanics, and pneumatic system technicians are the typical installers.

This solenoid valve is designed for pneumatic control systems where a center exhaust open configuration is required. It fits BSPP manifold and subbase port assemblies that conform to ISO 1179 specifications. Typical applications include directional control in compressed-air circuits found in industrial automation, process control panels, and mechanical system actuators. The operating temperature range spans 5 degrees F to 120 degrees F, covering most indoor and light industrial environments. It is sold individually as a single-unit package.

Key Features

• Center exhaust open unactuated state for fail-safe pneumatic circuit design
• BSPP thread standard with ISO 1179-compliant manifold and subbase ports
• Aluminum body construction for lightweight durability
• Nitrile seal material for compatibility with standard compressed-air and pneumatic media
• IP65 rated for dust-tight and low-pressure water-resistant environments
• cCSAus approved for North American code compliance

Compatibility

Designed for use with BSPP manifold and subbase port systems that meet ISO 1179 specifications. Suitable for pneumatic directional control circuits requiring a 120 VAC solenoid actuator with a center exhaust open configuration.

Installation Notes

Installation should be performed by a qualified industrial mechanic or pneumatic systems technician. De-energize and depressurize the pneumatic circuit completely before removing or installing any valve. Verify that the supply voltage matches the 120 VAC coil rating before energizing. Ensure all BSPP fittings and port connections are properly seated and leak-tested before returning the system to service.
