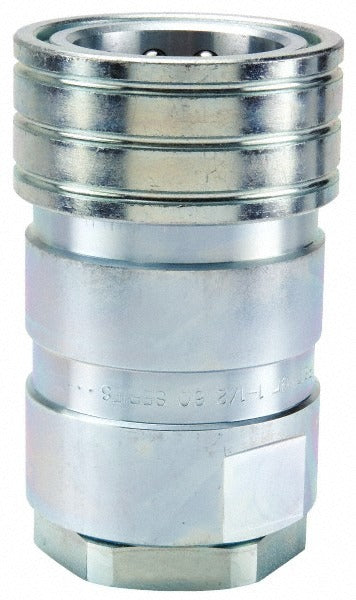

Parker H12-62-T24 Female Straight Thread Coupler 1000 Psi

Product Description

The PARKER H12-62-T24 is a female straight thread coupler designed for hydraulic hose assemblies in high-pressure fluid power systems. Built from steel with an SAE O-Ring Boss (ORB) shaft type, this fitting provides a secure, leak-resistant connection at a rated working pressure of 1,000 psi. The 1-7/8-12 thread size and 1.5-inch body diameter make it suitable for larger-diameter hydraulic lines commonly found in industrial, mobile, and construction equipment applications. Licensed hydraulic technicians and fluid power mechanics are the typical installers of this component.

This coupler is used in hydraulic hose routing and termination applications where a female straight thread end connection is required. The SAE ORB configuration uses an O-ring seated at the boss port to create a positive seal, reducing the risk of leakage under dynamic pressure. It is well-suited for use in mobile equipment, agricultural machinery, and industrial hydraulic circuits that require reliable high-pressure fittings at larger line sizes.

Key Features

• Female straight thread coupler with SAE ORB sealing configuration for positive, leak-resistant connections
• 1,000 psi working pressure rating for demanding hydraulic system applications
• 1-7/8-12 thread size accommodates larger hydraulic hose and port assemblies
• 1.5-inch body diameter suited for high-flow hydraulic circuits
• Steel construction provides durability in industrial and mobile equipment environments

Compatibility

Designed as an OEM-style replacement or new-assembly hydraulic hose fitting for systems requiring a 1-7/8-12 female straight thread SAE ORB coupler at 1,000 psi working pressure.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Inspect the O-ring seat and O-ring for damage prior to assembly, and ensure the O-ring is properly seated before torquing the connection. Follow the equipment manufacturer's port specifications and applicable fluid power standards during installation.
