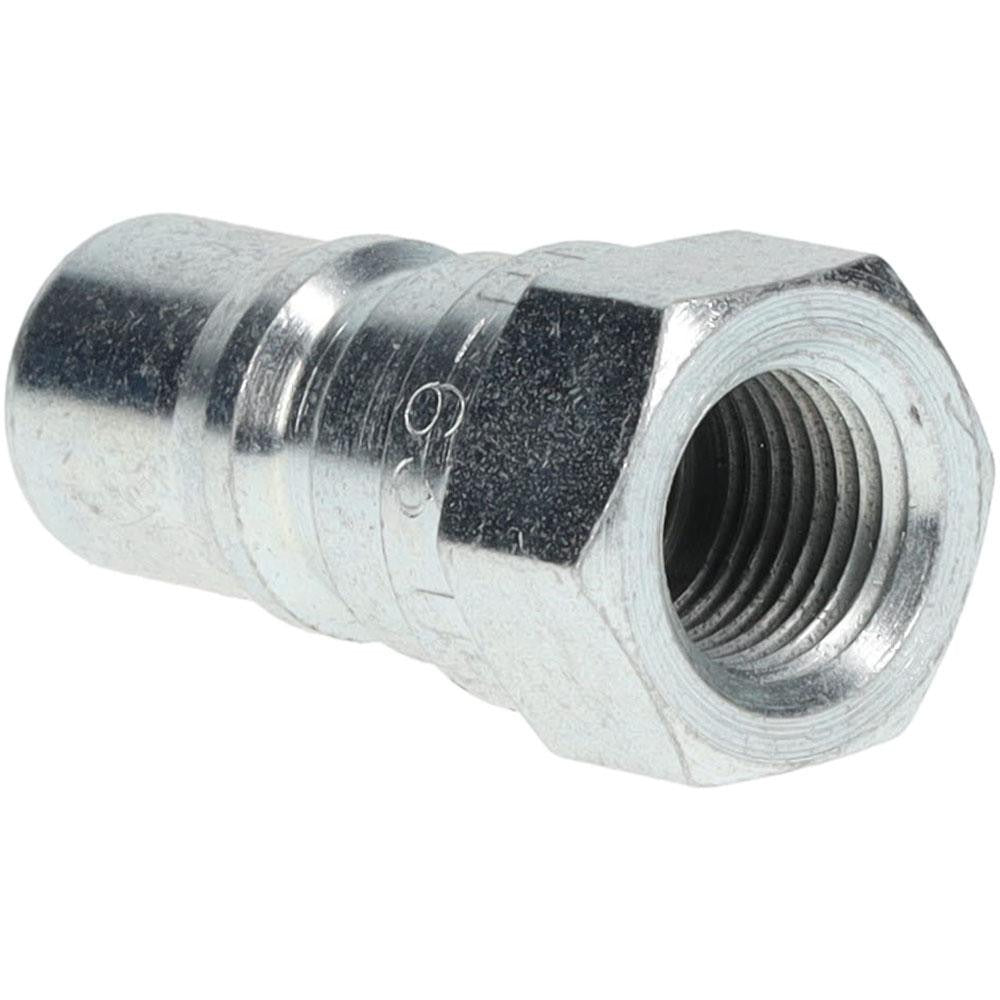

Parker H1-63 Hydraulic Hose Fitting 5000 Psi 1/8 in Nptf

Product Description

The PARKER H1-63 is a female pipe rigid fitting designed for hydraulic hose assemblies in demanding fluid power and industrial applications. Built from steel with a straight NPTF threaded connection, this fitting delivers a maximum working pressure of 5,000 psi and is rated for a maximum flow rate of 0.80 GPM. The 1/8 inch hose size and 1/8 inch thread size make it a compact, high-pressure solution for tight plumbing runs. Part of Parker's Series 60 hydraulic fitting line, the H1-63 meets ISO 7241-1, Series B standards. It is installed by hydraulic system technicians, industrial mechanics, and mobile equipment service professionals.

This fitting is suited for a range of fluid handling environments including industrial hydraulic lines, mobile equipment hydraulic circuits, food and chemical processing lines, gas lines, and water and coolant systems. The NPTF thread form creates a pressure-tight mechanical seal without requiring sealant tape in many applications, making it appropriate for clean, controlled installations where system integrity is critical. Its straight body profile simplifies routing in space-constrained assemblies.

Key Features

• Maximum working pressure of 5,000 psi for high-pressure hydraulic service
• NPTF threaded connection for a reliable, leak-resistant mechanical seal
• Straight body shape simplifies hose routing and assembly layout
• Steel construction provides durability in hydraulic and industrial fluid environments
• Meets ISO 7241-1, Series B standards for hydraulic quick-action couplings
• Rated for maximum flow of 0.80 GPM to suit small-bore hydraulic circuits

Compatibility

Suitable for use with food and chemical processing lines, gas lines, industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic familiar with high-pressure fluid power systems. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. NPTF threads rely on thread-form interference for sealing — inspect threads carefully before assembly and do not overtighten, as this can crack the fitting body. Follow applicable system design standards and equipment manufacturer torque guidelines for small-bore steel hydraulic fittings.
