Parker gbw.un385812050b Insulated Suction Line 50 Foot

Product Description

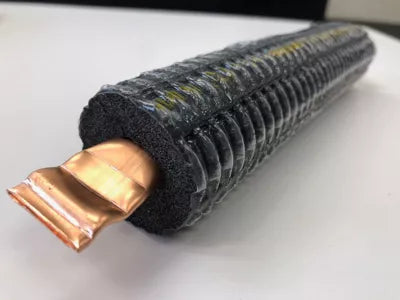

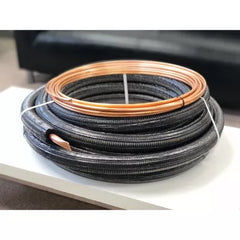

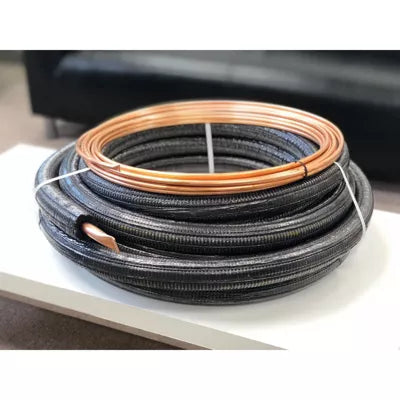

The PARKER gbw.un385812050b is a pre-insulated suction line lineset designed for unitary HVAC systems. It pairs a bare copper coil for the liquid line with a factory-insulated suction line, reducing field labor and ensuring consistent insulation coverage from the start. The suction line tubing spans from 3/8 inch to 5/8 inch with 1/2 inch insulation wall thickness across a 50-foot length. The outer polyethylene jacket protects the foam insulation from tearing during pull-through and routing. Licensed HVAC technicians install this lineset on split-system air conditioners and heat pumps as part of the refrigerant circuit between the indoor and outdoor units.

This lineset is suited for residential and light commercial unitary split systems where a pre-insulated suction line simplifies installation. It is rated for use with high-pressure refrigerants including R-410A. Incremental foot markings printed along the insulation allow the technician to measure the run accurately on site, supporting correct initial refrigerant charge calculations and reducing excess copper waste. The insulation surface is paintable, making it appropriate for exposed exterior installations where aesthetics or UV protection are a concern. The outer jacket is available in black or white finishes.

Key Features

• Factory pre-insulated suction line eliminates field insulation wrap on the suction tube
• Outer polyethylene jacket resists tearing during installation through tight chases or conduit
• Foot markings printed every foot along insulation for accurate line length measurement and charge calculation
• Compatible with R-410A and other high-pressure refrigerant applications
• Paintable insulation surface suitable for exposed exterior runs
• Outer jacket available in black or white to match installation surroundings

Compatibility

Designed as an OEM-style replacement and new-installation lineset for residential and light commercial unitary split-system air conditioners and heat pumps using high-pressure refrigerants such as R-410A.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with applicable mechanical codes and the equipment manufacturer instructions. De-energize and recover all refrigerant from the system before disconnecting or connecting any refrigerant lines. Seal the open ends of the copper tubing completely when connecting to the indoor or outdoor unit to prevent moisture or debris from entering the insulation. When installed in exposed exterior locations, apply a high-quality exterior paint over the insulation and consider covering with plastic duct or conduit for added UV and physical protection.

Technical Specifications

• Suction Line Tubing Size: 3/8 to 5/8 inches
• Insulation Wall Thickness: 1/2 inch
• Length: 50 feet
• Refrigerant Compatibility: R-410A and high-pressure refrigerant gases
• Outer Jacket Material: Polyethylene
• Insulation Type: Pre-formed foam with paintable surface
• Available Jacket Colors: Black, White
• Unit of Measure: Each

Standard Information

• Brand: PARKER
• Manufacturer Part Number: gbw.un385812050b
