Parker gbw.un383412050b Insulated Suction Line 50 Ft

Product Description

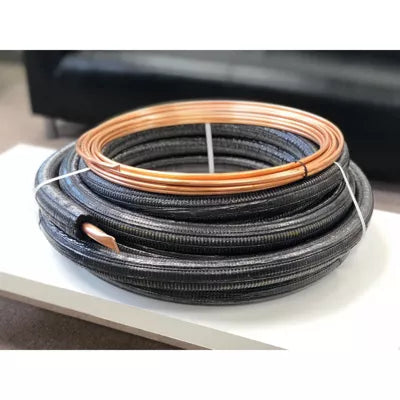

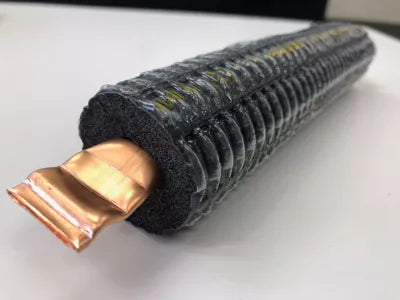

The PARKER gbw.un383412050b is a pre-insulated suction line lineset designed for unitary HVAC systems. It pairs a bare copper coil for the liquid line with a factory-insulated suction line, reducing field prep time and improving system integrity. The suction line tubing ranges from 3/8 inch to 3/4 inch in diameter, the liquid line measures 1/2 inch, and the lineset runs 50 feet in total length. An outer polyethylene jacket protects the foam insulation from tearing during the pull and connection process. Foot markings are printed along the insulation at every foot, allowing technicians to verify line length accurately and minimize copper waste during initial system charge.

This lineset is suited for residential and light commercial split-system installations using unitary equipment. It is rated for use with high-pressure refrigerants including R-410A. The paintable outer jacket is available in black or white, making it adaptable for exposed exterior runs where aesthetics or code require a finished appearance. It is appropriate for rooftop, wall-chase, and exterior wall applications where a combined suction and liquid line run is needed in a single pre-insulated assembly.

Key Features

• Pre-insulated suction line with bare copper liquid line — ready for unitary system installation
• Polyethylene outer jacket resists tearing and physical damage during installation
• Foot markings printed every foot along the insulation for accurate length measurement and copper waste reduction
• Compatible with R-410A and other high-pressure refrigerant applications
• Paintable outer jacket in black or white for exterior or exposed installations
• 50-foot length covers standard residential and light commercial lineset runs

Compatibility

Designed as an OEM-style suction line lineset for unitary split-system HVAC equipment using high-pressure refrigerants such as R-410A. Suitable for residential and light commercial applications requiring a 3/8 inch to 3/4 inch suction line and a 1/2 inch liquid line.

Installation Notes

Installation should be performed by a licensed HVAC technician following applicable mechanical codes. Power down and isolate the system fully before making line connections. The copper pipe ends should be completely sealed at the point of connection to the AC unit to prevent moisture or debris from entering the insulation. When installed in exposed exterior areas, apply a high-quality exterior-grade paint over the jacket for added UV and weather protection; installation under plastic duct is also recommended where feasible.

Technical Specifications

• Suction Line Diameter: 3/8 to 3/4 inches
• Liquid Line Diameter: 1/2 inch
• Length: 50 feet
• Insulation Type: Pre-insulated foam with polyethylene outer jacket
• Refrigerant Compatibility: R-410A and other high-pressure refrigerants
• Jacket Colors Available: Black, White
• Unit of Measure: Each

Standard Information

• Brand: PARKER
• Manufacturer Part Number: gbw.un383412050b
