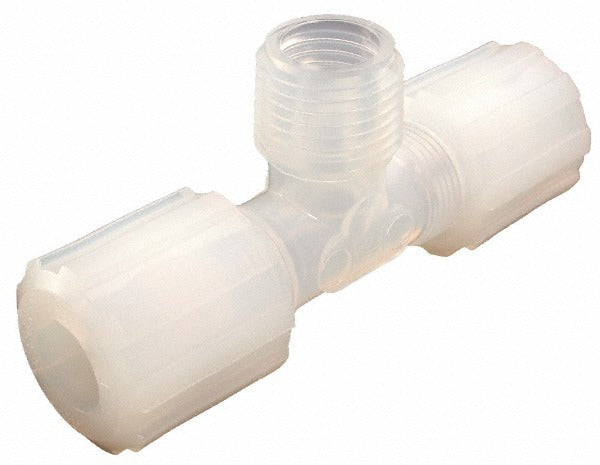

Parker GBMT-224 Compression Male Branch Tee 1/8 in

Product Description

The PARKER GBMT-224 is a compression-style male branch tee fitting designed for use with 1/8-inch outside diameter tubing. It is constructed from Perfluoroalkoxy (PFA) and Polytetrafluoroethylene (PTFE) materials, making it chemically resistant and well suited for high-purity fluid handling and aggressive media applications. The plastic grip compression mechanism provides a reliable, leak-resistant connection without the need for soldering or welding. This fitting is typically installed by plumbers, instrumentation technicians, and chemical process professionals working in low-flow fluid or gas distribution systems.

This fitting is appropriate for use in laboratory, semiconductor, pharmaceutical, and industrial process piping systems where chemical compatibility and purity are critical. The male branch tee configuration allows a branch connection to be made from a main tube run while also providing a male threaded port, enabling integration into existing threaded manifolds or instrument connections. Its compact size and lightweight build make it practical in confined instrument panel or enclosure installations.

Key Features

• PFA and PTFE construction offers broad chemical resistance and high-purity fluid compatibility
• Compression-style connection accommodates 1/8-inch OD tubing without soldering or welding
• Male branch tee configuration enables inline branching with a threaded port outlet
• Plastic grip design simplifies hand assembly and disassembly during service
• Lightweight at 0.05 pounds, suitable for compact instrument panels and enclosures

Compatibility

Designed as an OEM-style compression fitting replacement for fluid and gas handling systems using 1/8-inch outside diameter tubing in high-purity or chemically aggressive service.

Installation Notes

Installation should be performed by a qualified plumber or instrumentation technician familiar with compression fitting assembly. Always depressurize and isolate the tubing circuit before disassembling or installing any compression fitting. Ensure tubing is cut square and fully seated into the fitting before tightening the compression nut to achieve a proper seal. Do not overtighten plastic grip compression fittings, as excess force can crack the fitting body or deform the ferrule.
