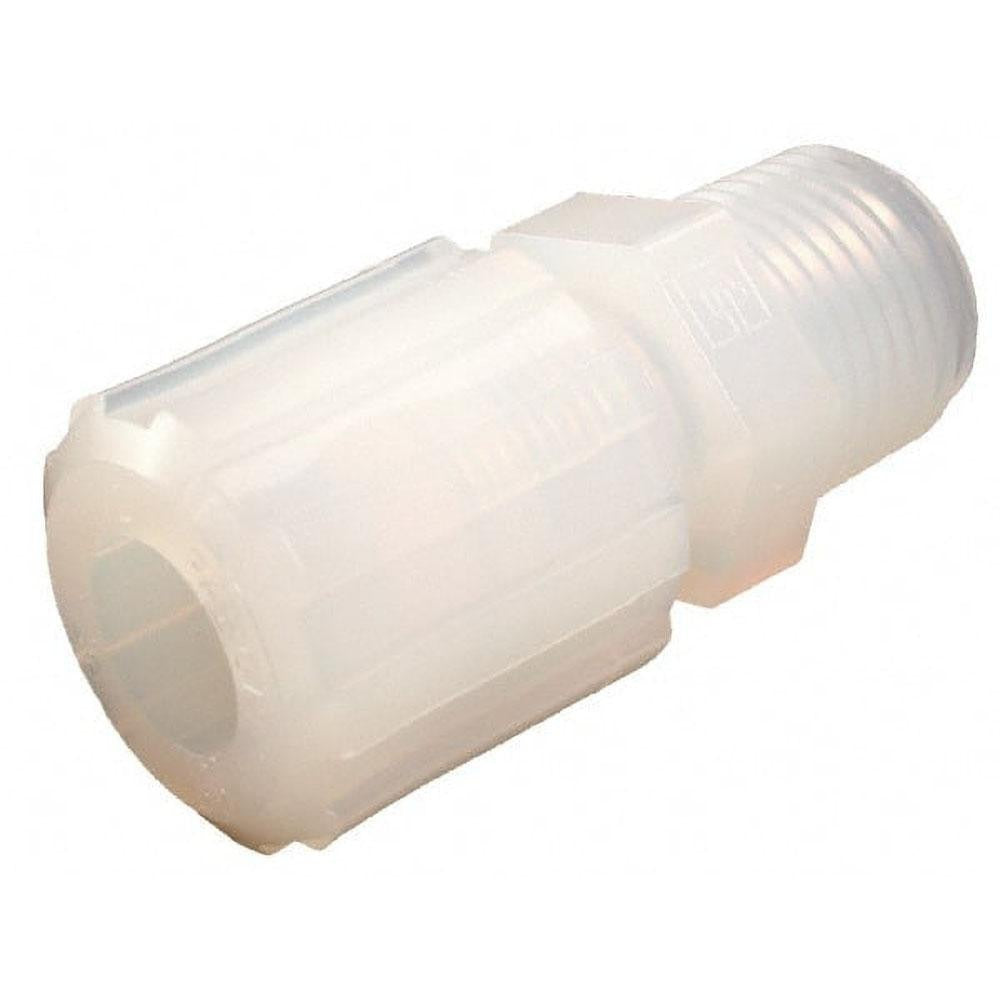

Parker GAMS-48 Compression Male Straight Adapter 1/4 in

Product Description

The PARKER GAMS-48 is a compression tube male straight adapter designed to connect 1/4-inch OD tubing to a male pipe thread fitting. Constructed from Perfluoroalkoxy (PFA) and Polytetrafluoroethylene (PTFE), this adapter offers strong resistance to corrosive chemicals, high-purity fluid systems, and a wide range of process media. The plastic grip type compression fitting provides a secure, leak-resistant connection without the need for welding or soldering. It is well suited for plumbing, instrumentation, and fluid handling applications where corrosion resistance and chemical compatibility are essential.

This adapter is typically installed in industrial, commercial, and laboratory fluid systems where PFA or PTFE wetted components are required. Common applications include chemical processing lines, semiconductor fabrication, pharmaceutical fluid handling, and high-purity water systems. The male straight configuration allows direct inline connection from tubing to a threaded port, simplifying routing in tight or compact installations.

Key Features

• PFA and PTFE construction provides exceptional chemical and corrosion resistance
• 1/4-inch tube OD compression-style connection for a secure, leak-resistant seal
• Male straight adapter configuration for direct inline tubing-to-pipe connections
• Plastic grip-type compression body requires no soldering or special tools
• Suited for high-purity and chemically aggressive fluid handling systems

Compatibility

Designed as an OEM-style compression fitting for use with 1/4-inch OD tubing in fluid handling and instrumentation systems requiring PFA or PTFE wetted components.

Installation Notes

Installation is typically performed by licensed plumbers or instrumentation technicians familiar with compression-style fittings. Shut off and depressurize the fluid system completely before disassembly or installation. Hand-tighten the compression nut first, then apply only the manufacturer-recommended turns to seat the ferrule without over-stressing the plastic body. Verify system compatibility with the process fluid and operating pressure before returning the line to service.
