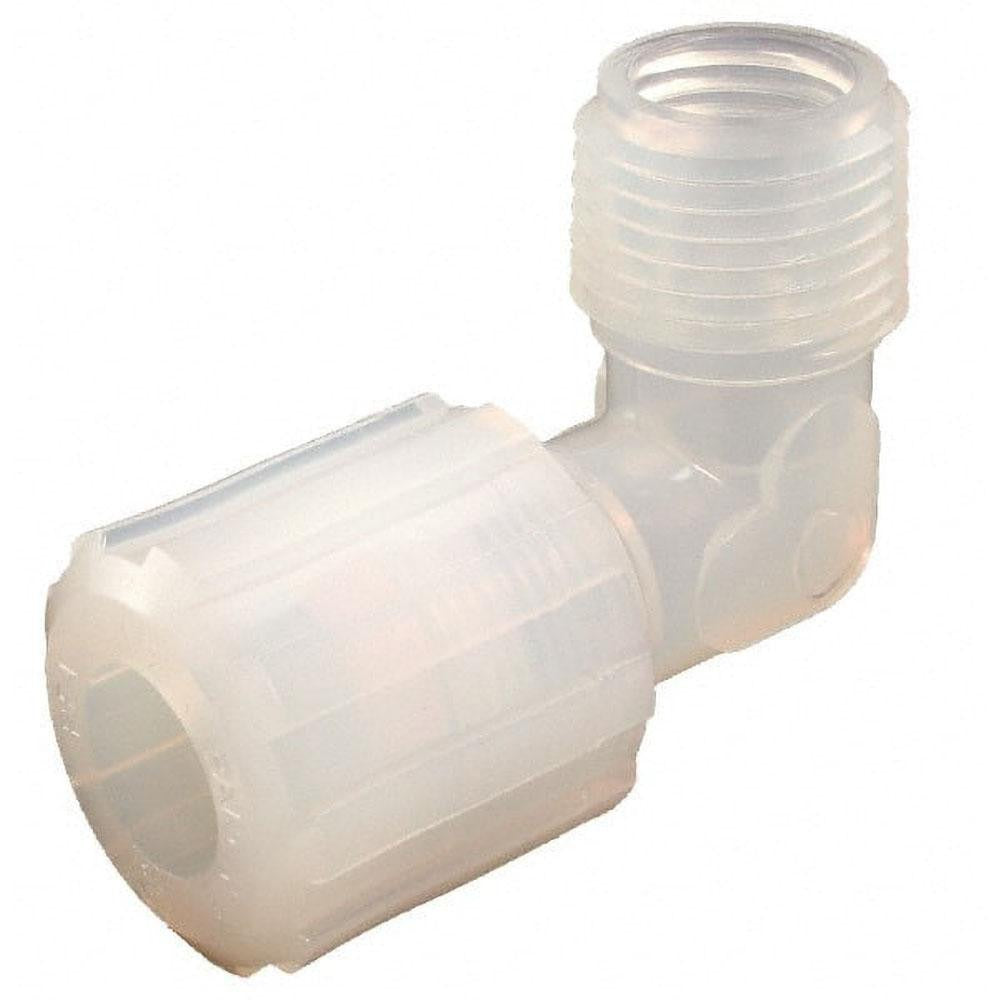

Parker GAME-24 Compression Male Adapter Elbow 1/8 in

Product Description

The PARKER GAME-24 is a compression tube male adapter elbow designed to connect 1/8 inch OD tubing to a plug-in stem fitting. Constructed from Perfluoroalkoxy (PFA) and Polytetrafluoroethylene (PTFE), this elbow offers excellent chemical resistance and low friction characteristics suited to high-purity fluid and gas handling applications. The plastic grip-style compression mechanism provides a secure, leak-resistant connection without the need for threaded tube ends. This fitting is typically installed by plumbers, process technicians, or HVAC mechanics working on instrument tubing, chemical transfer lines, or specialty fluid systems.

The GAME-24 is well suited for use in laboratory, analytical, chemical processing, and specialty fluid distribution systems where PFA and PTFE materials are specified for compatibility with aggressive or high-purity media. Its elbow geometry allows directional changes in tight spaces, and the plug-in stem end simplifies connection to compatible manifold ports or panel fittings. Sold individually, this fitting is appropriate for both new installations and field repairs where a reliable 1/8 inch tube compression elbow is required.

Key Features

• PFA and PTFE construction provides superior chemical resistance for corrosive and high-purity fluid applications
• Compression fitting design accommodates 1/8 inch OD tubing with no tube preparation beyond a clean square cut
• Male adapter elbow configuration allows 90-degree directional change at the tube connection point
• Plug-in stem end simplifies connection to compatible ports and panel-mount fittings
• Plastic grip-style compression mechanism allows installation with standard hand tools
• Sold as a single unit, suitable for spot replacement or small-quantity applications

Compatibility

Designed as an OEM-style compression fitting for use with 1/8 inch OD tubing in systems specifying PFA or PTFE fluid path components.

Installation Notes

Installation should be performed by a qualified plumber or process piping technician familiar with compression fitting assemblies. Depressurize and isolate the fluid or gas line completely before removing or installing any fitting. Ensure tubing is cut cleanly and squarely to the correct length before inserting into the compression body. Do not overtighten the compression nut, as PFA and PTFE components are sensitive to excessive clamping force.
