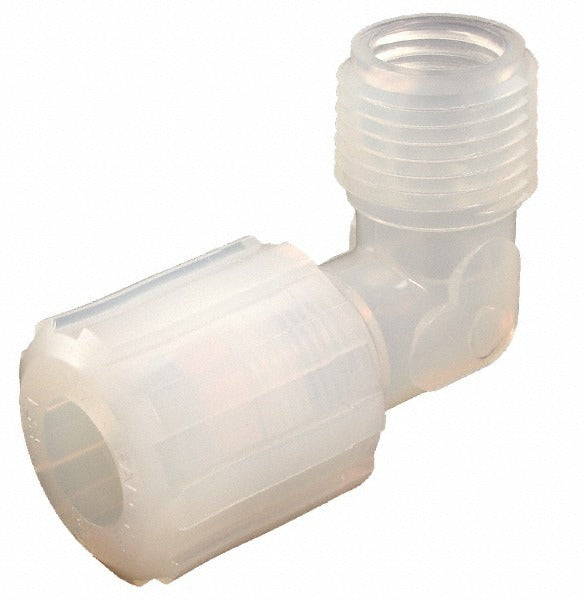

Parker GAME-22 Compression Male Adapter Elbow 1/8 in

Product Description

The PARKER GAME-22 is a compression tube male adapter elbow designed to connect 1/8-inch OD tubing to a 1/8-inch NPT male threaded port at a 90-degree angle. The fitting uses a compression-style grip mechanism with a plastic grip ring, eliminating the need for soldering or flaring. Constructed from Perfluoroalkoxy (PFA) and Polytetrafluoroethylene (PTFE), this fitting offers excellent resistance to aggressive chemicals, high-purity fluids, and elevated temperatures. It is a single-piece, compact fitting suited for instrumentation, fluid handling, and process piping applications where a leak-tight tube-to-pipe transition is required.

This fitting is commonly used in chemical processing, laboratory instrumentation, semiconductor fabrication, and industrial fluid systems where non-reactive, high-purity wetted surfaces are required. The tube-by-NPT configuration makes it a practical choice when transitioning from flexible or rigid small-bore tubing to a threaded manifold, valve, or instrument port. Its compact elbow geometry simplifies routing in tight or confined installations.

Key Features

• PFA and PTFE construction provides broad chemical resistance and high-purity fluid compatibility
• Compression-style tube connection with plastic grip ring requires no soldering or flaring
• 90-degree elbow configuration simplifies tube routing in confined spaces
• 1/8-inch tube OD by 1/8-inch NPT male thread sizing for small-bore instrumentation lines
• Single-piece fitting sold individually, suitable for low-quantity service and repair needs

Compatibility

Designed as an OEM-style compression fitting for use with 1/8-inch OD tubing and 1/8-inch NPT threaded ports in instrumentation and fluid handling systems.

Installation Notes

Installation is typically performed by a pipefitter, instrumentation technician, or plumber familiar with compression fittings and NPT thread sealing practices. Shut off all fluid supply and depressurize the line before disassembly or installation. Apply appropriate thread sealant or PTFE tape to the NPT male threads in accordance with applicable piping codes. Hand-tighten the compression nut onto the tubing before applying a final snug turn with a wrench to seat the compression ring without overtightening, which can crack plastic grip components.
