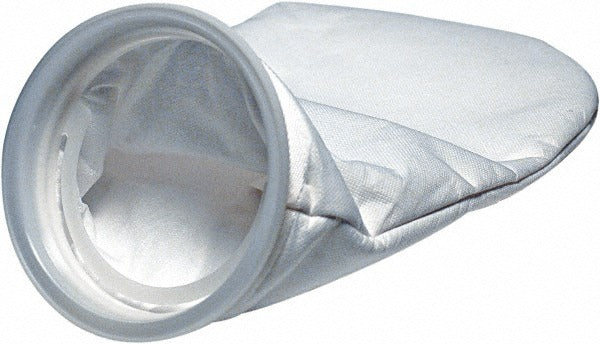

Parker G2XLH2.5-H High Efficiency Bag Filter 2.5 Micron

Product Description

The PARKER G2XLH2.5-H is a high-efficiency bag filter rated at 2.5 microns, designed for industrial and commercial liquid filtration systems. This Size 2 filter handles a maximum flow rate of 80 GPM and operates at temperatures up to 200 degrees F. The polypropylene body construction provides resistance to a wide range of process fluids. Measuring 7 inches in diameter and 31.25 inches in length, it fits standard Size 2 bag filter housings. Licensed filtration technicians and industrial mechanics install this unit in process lines, water treatment systems, and fluid handling applications where fine particulate removal is required.

The G2XLH2.5-H is suited for high-flow liquid filtration applications in industrial process systems, commercial water treatment, and chemical handling lines. Its 80 GPM maximum flow capacity makes it appropriate for large-volume systems where consistent particulate capture at 2.5 microns is critical. The high-efficiency bag design reduces bypass and maximizes surface contact with the process fluid, extending service intervals in demanding filtration duty cycles.

Key Features

• 2.5 micron filtration rating for fine particulate capture
• 80 GPM maximum flow rate supports high-volume process lines
• Size 2 bag format for compatibility with standard industrial bag filter housings
• Polypropylene body material for broad chemical resistance
• Rated to 200 degrees F maximum operating temperature
• 31.25 inch length and 7 inch diameter for Size 2 housing fit

Compatibility

Designed as a direct replacement for standard Size 2 bag filter housings used in industrial liquid filtration systems.

Installation Notes

Installation and replacement should be performed by qualified filtration or mechanical technicians. Isolate and depressurize the filter housing completely before removing the spent bag. Verify the housing lid seal and basket condition before inserting the new filter bag to prevent bypass. Follow all applicable facility lockout/tagout procedures prior to servicing the filtration system.
