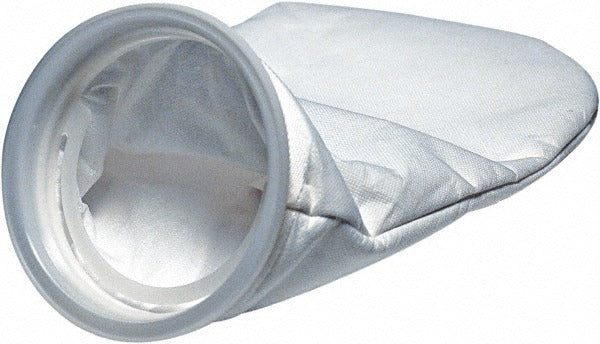

Parker G2XLH10-H High Efficiency Bag Filter 10 Micron

Product Description

The PARKER G2XLH10-H is a high-efficiency bag filter designed for liquid filtration in industrial and commercial process systems. Rated at 10 microns, it captures fine particulate from fluid streams while supporting flow rates up to 80 GPM, making it suitable for high-throughput applications where consistent filtration is critical. The filter measures 7 inches in diameter and 31.25 inches in length, conforming to the standard Size 2 bag filter form factor. Constructed from polypropylene, the filter body resists a broad range of process chemicals and handles operating temperatures up to 200 degrees F. Installation and replacement are handled by maintenance technicians, industrial pipefitters, or process engineers.

This filter is used in industrial process liquid filtration, water treatment, chemical processing, and similar applications where a Size 2 bag housing is already in service. The high-efficiency construction makes it appropriate for systems requiring tighter particulate control than standard felt bags provide. It fits standard Size 2 bag filter housings and is well suited to continuous-duty installations where maximum flow capacity and reliable micron retention are both priorities. It is sold and shipped individually.

Key Features

• 10-micron rating for fine particulate removal from liquid process streams
• Maximum flow rate of 80 GPM supports high-throughput system designs
• Standard Size 2 bag configuration for broad housing compatibility
• Polypropylene construction resists chemical attack and corrosion
• Rated to 200 degrees F for elevated-temperature process applications
• 31.25-inch length and 7-inch diameter match standard Size 2 housing dimensions

Compatibility

Designed as an OEM-style replacement for standard Size 2 bag filter housings rated for polypropylene media.

Installation Notes

Bag filter replacement is typically performed by a maintenance technician or pipefitter. Before servicing, isolate and depressurize the filter housing completely and verify that the process fluid has cooled to a safe handling temperature. Inspect the housing seal and basket for wear before installing the new bag. Ensure the bag is seated fully and evenly in the basket to prevent bypass flow around the filter media.
